PLBT-028F-048-CS-002 - Datasheet
MBA
Category Information

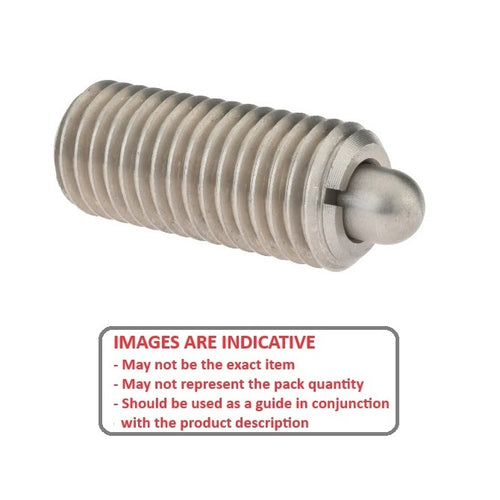

Plungers - Ball Threaded - Steel Body - Stainless BallStainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 4-48 UNF (2.85mm)
- Body Length (L)
4.8
mm
(Equiv. 0.189 in.) - Initial Pressure (F1) 0.6 N
- Final Pressure (F2) 2.2 N
- Ball Diameter (D1) 1.6 mm
- Ball Height (H) 0.5 mm
- Drive Slotted
- Material Steel Body with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- 3408A65
- W23
- W-23
