PLBT-028F-048-S3N-002 - Datasheet
MBA
Category Information

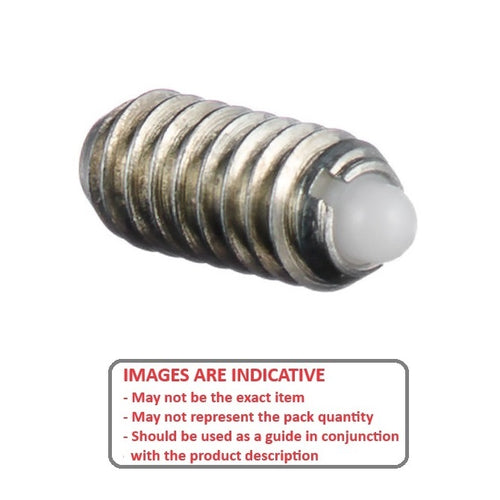

Plungers - Ball Threaded - Stainless Body - Nylon BallNylon Ball Stainless Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 4-48 UNF (2.85mm)
- Body Length (L)
4.8
mm
(Equiv. 0.189 in.) - Initial Pressure (F1) 0.6 N
- Final Pressure (F2) 2.2 N
- Ball Diameter (D1) 1.6 mm
- Ball Height (H) 0.5 mm
- Drive Slotted
- Material Stainless Steel 303 Grade with Nylon Ball
Product Compliance and Data
Additional Resources
Cross References
- 34085A35
- Y-1
- Y1
