CSL-04.00X10.16X2.57F - Datasheet
MBA
Category Information

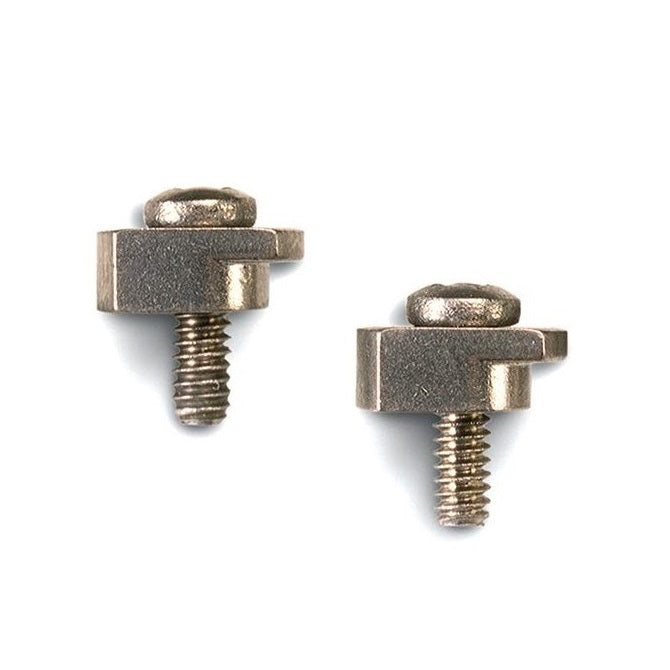

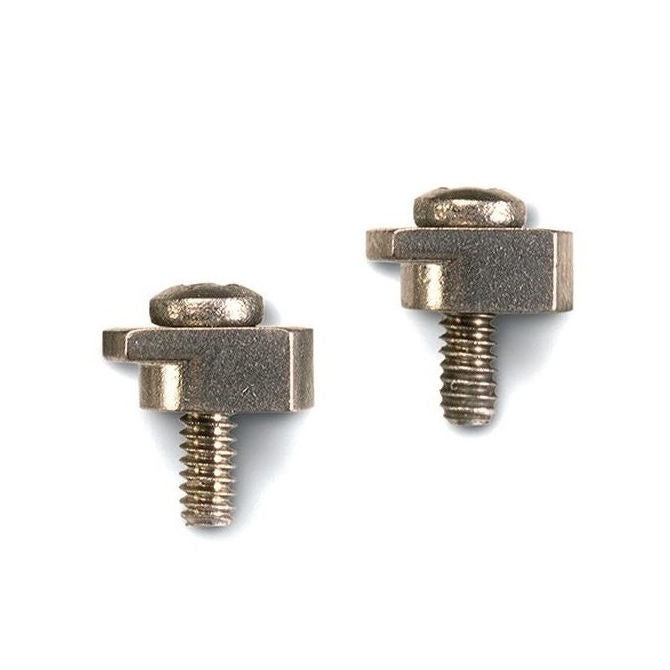

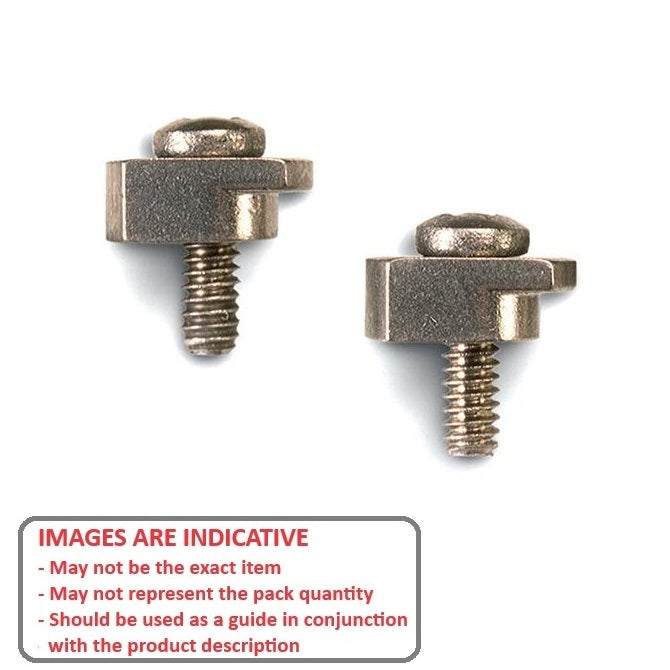

Clamps - Syncro - L ShapedL Shaped Syncro Clamps. This is the main category in this series
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

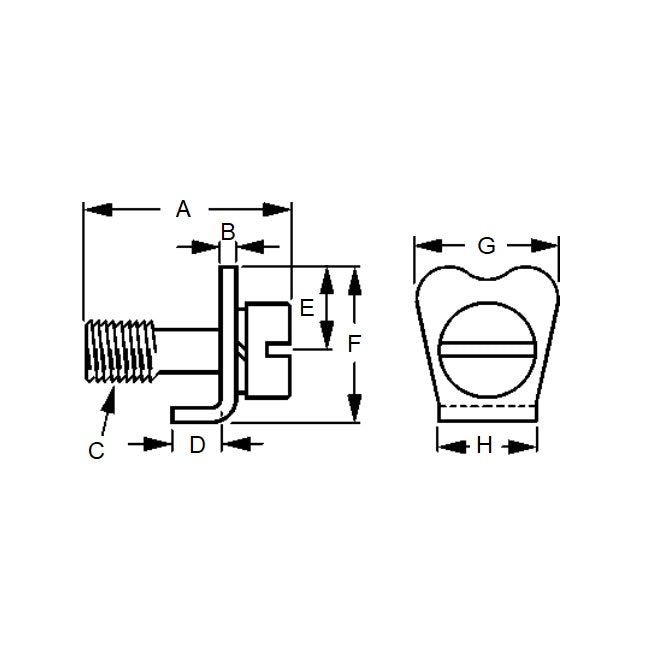

- Screw Size : 4-48 UNF (2.85mm)
- Screw Length
10.160
mm
(Equiv. 0.4 in.) - Clamp Length (F)
7.938
mm
(Equiv. 0.313 in.) - D 2.565 mm
- E 4.366 mm
- B 0.940 mm
- G 7.163 mm
- H 4.765 mm
- Finish None
- Material Stainless Steel 18-8 (Similar to A2, 303, 304)
Product Compliance and Data
Additional Resources
Cross References
- S3001Y-MS17183-2
- S3001YMS171832
