EZL-028C-048F-064-C - Datasheet
MBA
Category Information

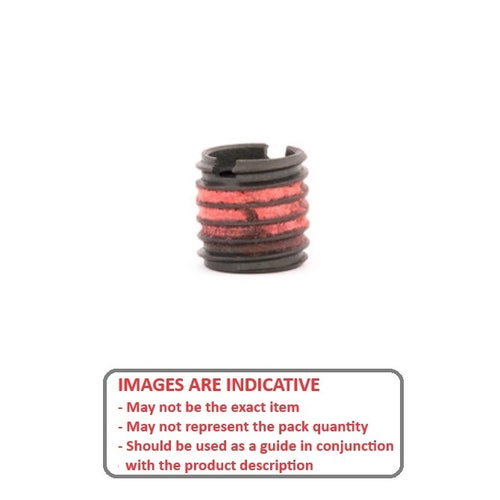

Thread Repair - Inserts - EZ-Lok - Solid Carbon SteelSolid Carbon Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required
- Install with a bolt and wrench
- Metric, UNC and UNF

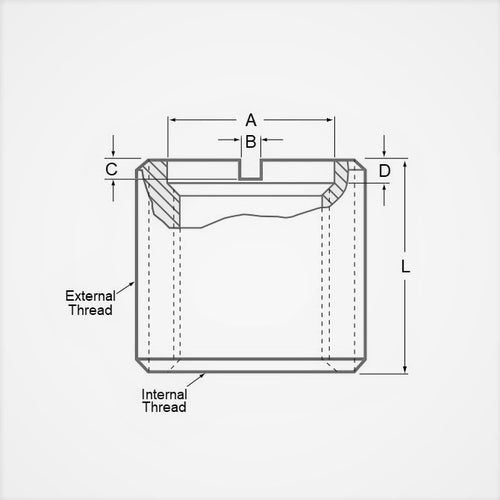

Product Data
- Internal Thread : 4-40 UNC (2.85mm)
- Length 6.35 mm
- External Tap Size 4.762mm (10-32 UNF)
- Tapping Hole Size 3.97 mm
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 329-004
- Reid Tool® 329-004
- 90248A016
- Small Parts EZ-440
- EZ440
- 329004
