NT028C-TH1206-S3 - Datasheet
MBA
Category Information

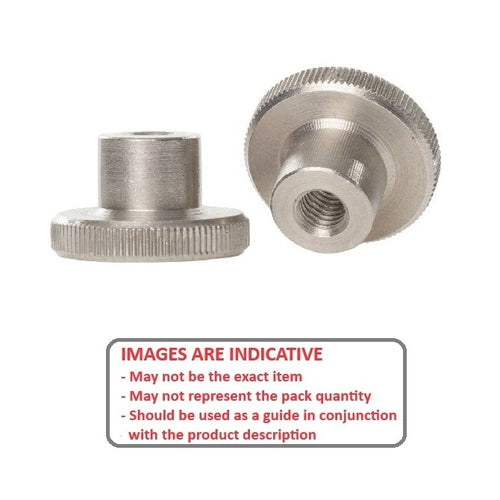

Nuts - Thumb - BasicBasic Thumb Nuts. This is the main category in this series
Product Data

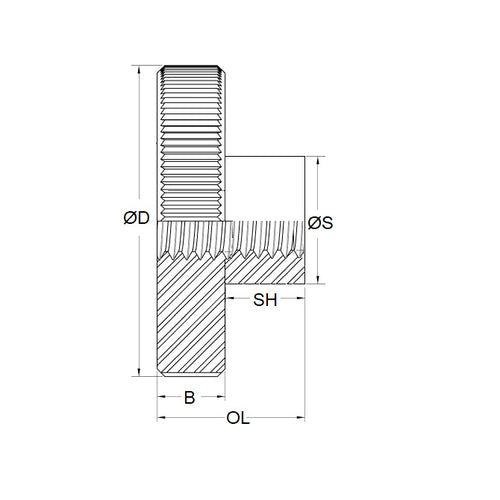

- Thread Size : 4-40 UNC (2.85mm)
- Overall Length
9.5
mm
(Equiv. 0.374 in.) - Head Width (B)
3.18
mm
(Equiv. 0.125 in.) - Head Diameter 12.70 mm
- Shoulder Diameter 6.35 mm
- Shoulder Height 6.35 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91833A112
- SKN-5
- SKN5
