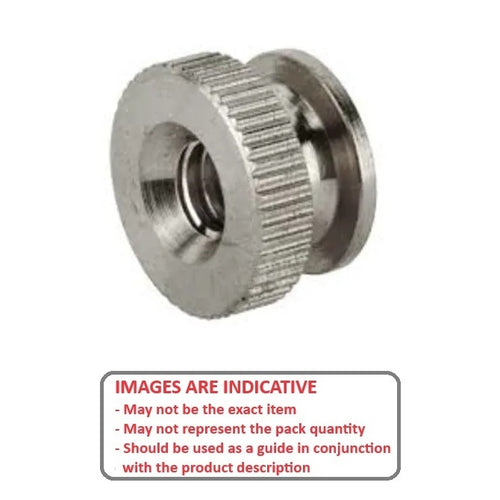

NT028C-THC-S3 - Datasheet

MBA

Product Data

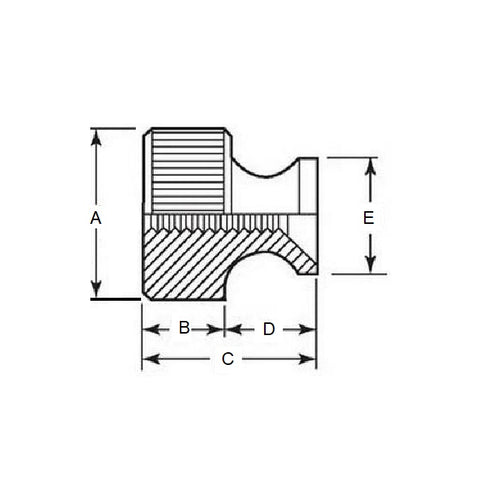

• Thread Size : 4-40 UNC (2.85mm)
• Overall Length (C) 6.4 mm
  (Equiv. 0.252 in.)
• Head Width (B) 3.18 mm
  (Equiv. 0.125 in.)
• Head Diameter (A) 7.94 mm
• Collar Diameter (E) 6.35 mm
• Collar Height (D) 3.18 mm
• Material Stainless Steel 303 (Similar to A2, 304, 18-8)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
