Miniature Bearings Australia
SS028C-0048-AS-NT - Datasheet
MBA
Category Information

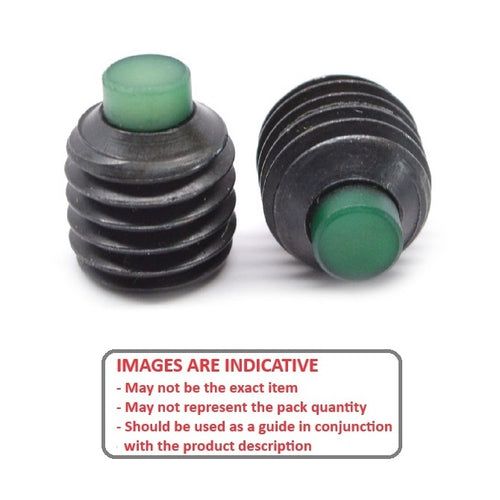

Socket Set Screws - Nylon Tipped - Alloy SteelAlloy Steel Nylon Tipped Socket Set Screws. Nylon tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.
- Socket driven grub screws that uses a non-metallic tip made of Nylon to prevent damage to the shaft it secures.
- Ideal for joining a pulley, gear, or collar to a shaft without scratching or scarring, and the nylon tip can also provide a self-locking effect by increasing friction and absorbing vibration, preventing loosening.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

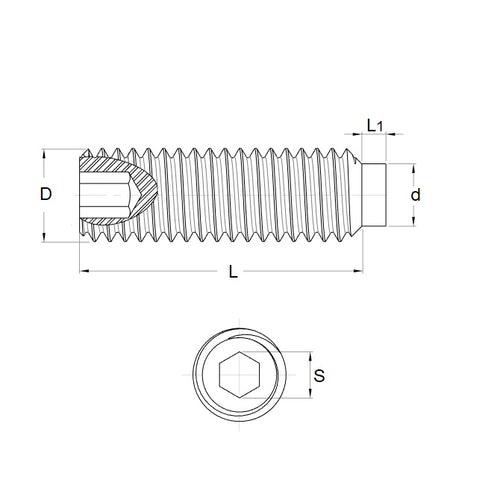

- Thread Size : 4-40 UNC (2.85mm)
- Thread Length (L)
4.8
mm
(Equiv. 0.189 in.) - Type Nylon Tipped
- Overall Length (L + L1) 5.6 mm
- Tip Diameter (d) 1.6 mm
- Tip Length (L1) 0.8
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Drive Type Black Oxide
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 94115A105
- BTS-315
- BTS315
