SS028C-0032-AS - Datasheet
Brighton Best
Category Information
Socket Set Screws - Standard Cup Point - Alloy Steel DIN916Alloy Steel DIN916 Standard Cup Point Socket Set Screws. Standard grub screws. UNC - UNF - BA - METRIC.

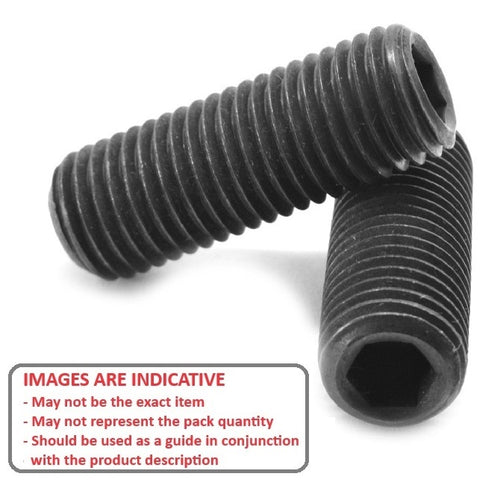

- Socket driven grub screw with a standard cup point.
Product Data
Black oxide coated steel

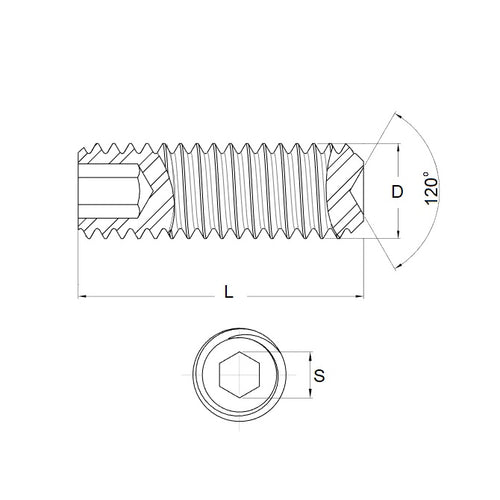

- Thread Size : 4-40 UNC (2.85mm)
- Thread Length (L) 3.2 mm
- Type Standard Cup Point
- Hex Key Size 1.27 (0.05)
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Finish Hardened, Black Oxide Coated
- Material Carbon Steel - Hardened GD14.9
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Applications & Uses
- RC Car Parts
- Team Associated® - RC10 - T3 1/10 - Replacement Set Screws
Cross References
- Associated® 6951 (Screws Only)
- 91375A103
- Reid Tool® BRB-101070P
- Reid Tool® BRB-111001P
- Reid Tool® HK-32020
- Losi® LOSA6227
- Small Parts SSAS-440-2
- BRB111001P
- BRB101070P
- HK32020
- SSAS4402
