NT028C-HX-NY - Datasheet
MBA
Category Information

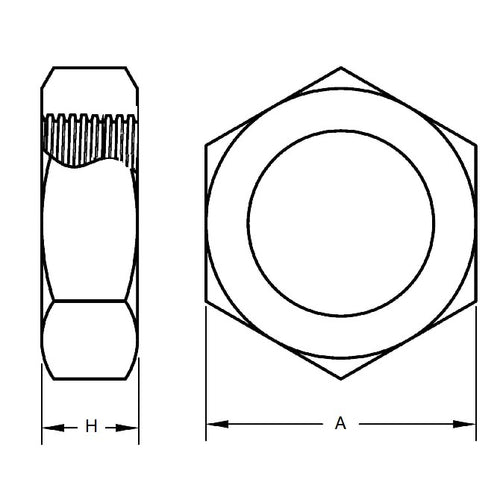

Nuts - Hexagonal - Full - Nylon - StandardStandard Nylon Full Hexagonal Nuts. Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- An expanded range may be available on special order. Please enquire.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data

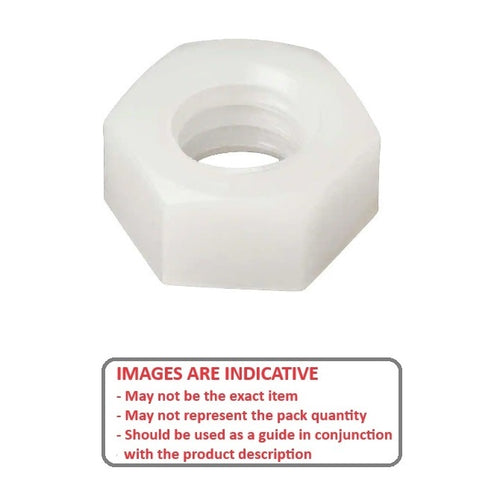

Deleted Item. Available while stocks last. Full plastic nylon nuts
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 4-40 UNC (2.85mm)
- Thickness (H) 2.38 mm
- Across Flats (A/F) 6.35 mm
- Type Hex Nut
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Nylon (Polyamide 6/6 Natural)
Product Compliance and Data
Additional Resources
Applications & Uses
- RC Car Parts
- Team Associated® - RC10 - T3 1/10 - 4-40 Nylon Nuts
Cross References
- 94812A200
- MicroFast® HNN0440
- Small Parts HNN-440
- HNN440
