THS028C-019-K-NY-WF - Datasheet
MBA
Category Information

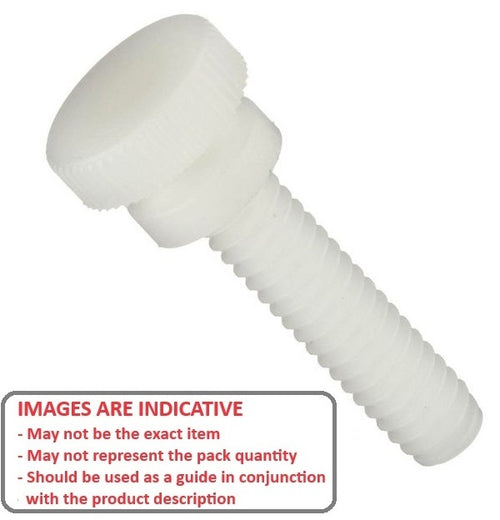

Screws - Thumb - Knurled - Washer Face - NylonNylon Washer Face Knurled Thumb Screws. Knurled head nylon thumb screws with an integral washer
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

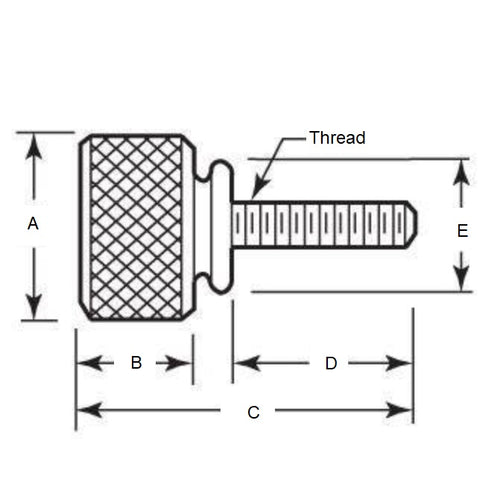

- Thread Size (C) : 4-40 UNC (2.85mm)
- Thread Length (Tl)
19.05
mm
(Equiv. 0.75 in.) - Overall Length (L)
26.19
mm
(Equiv. 1.031 in.) - Head Diameter (D) 7.94 mm
- Head Type Nylon Knurl
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- A 9P57-044012
- A9P57-044012
- A9P57044012
