SCT0400-008-PLH-P-PH-CZ - Datasheet

MBA

Category Information

Screws - Self Tapping - Hard or Soft Plastics - Pan Head

Pan Head Hard or Soft Plastics Self Tapping Screws. Tri-Lobe Course Thread Plastic Threading Screws

  • Thread cutting screws for plastics
  • Be sure to select correct screw for hard or soft plastic threadcutting

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Approx Diameter : 4.0 mm
    (Equiv. 0.157 in.)
  • Thread Length (l) 8 mm
    (Equiv. 0.315 in.)
  • Thread Pitch 1.59 mm
  • Drive Type Pozi Drive
  • Head Diameter (dk) 8.0 mm
  • Type Course Threadcutting For Hard or Soft Plastics
  • Material Zinc Plated and Waxed
Country of Origin: TW

Product Compliance and Data

Additional Resources

View full details

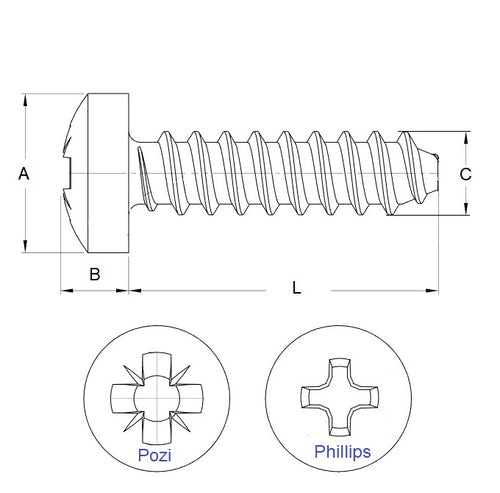

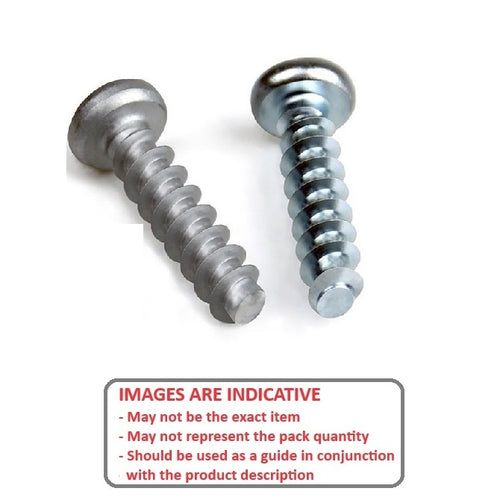

SCT0400-008-PLH-P-PH-CZDiagramSCT0400-008-PLH-P-PH-CZImage
