0R-0040-0300-T5O - Datasheet
MBA
Category Information

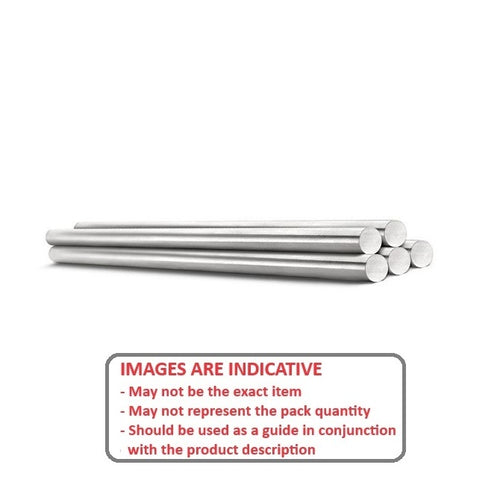

Rod - Round - Titanium - High StrengthHigh Strength Titanium Round Rod. Titanium rod available in oversized and undersized tolerances
- An expanded range may be available on special order. Please enquire.
- Used in critical aircraft structural components. UNS R56400.
- Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
- Grade 5, 6Al-4V, TC4 is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
- Rod with undersized tolerances is suitable for use with precision ground bearings with inner rings. HRC 36. Surface Finish Ra 0.8-1.6 um. Not suitable for running needle bearings directly.
- Rod with oversized tolerances is suitable for pulleys or gears requiring interference fits, or for machining to your required tolerances
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

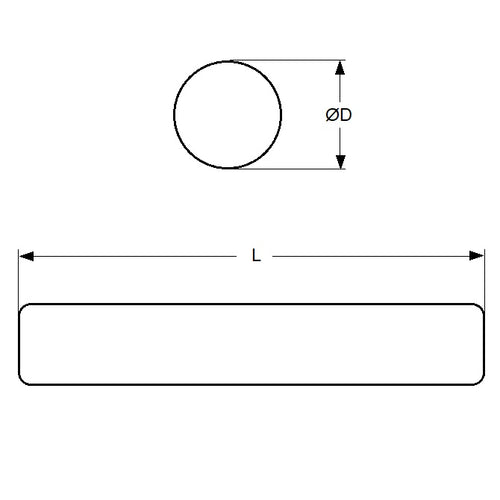

- Diameter (d)
:
4.000
mm
+ 0.005 / + 0.030
(Equiv. 0.157 in.) - Length (L) 300 mm
- Material Ti-Gr5/TC4
- Chamfered
- End Colour Code Blue / Black
- Material Titanium High Strength
