RCL-040-094-ZD - Datasheet
MBA
Category Information

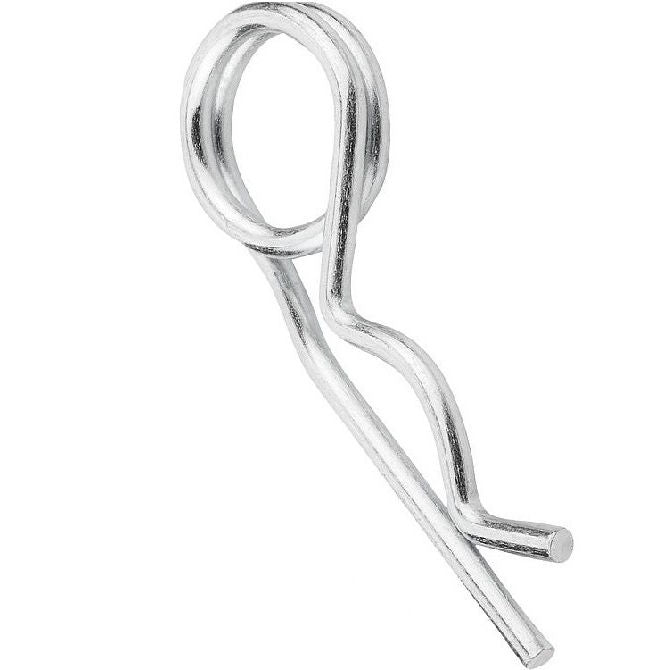

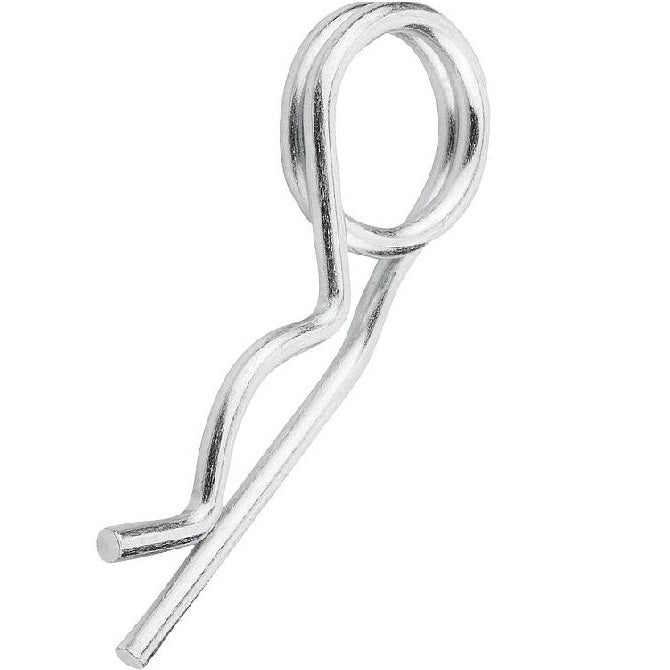

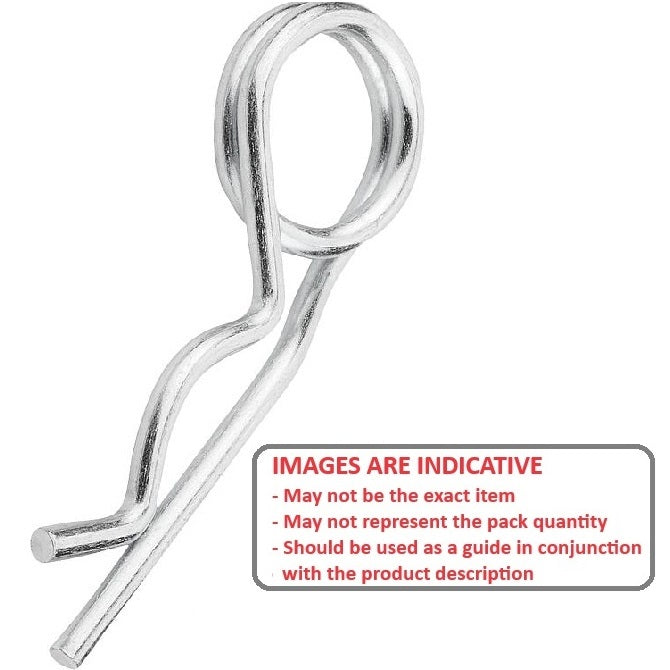

R Clips - Double Coil - SteelSteel Double Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- Material: Spring Wire
Product Data

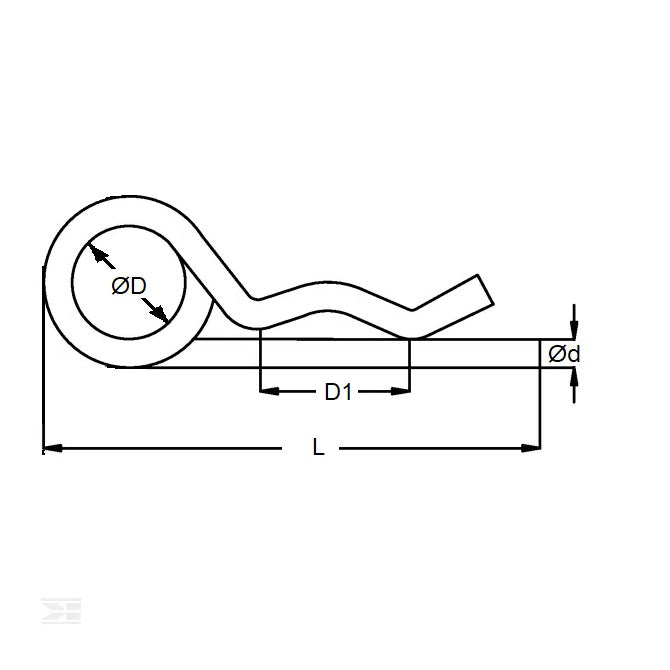

- Wire Thickness (d) : 4.00 mm
- Length (L) 94.0 mm
- Material Zinc Plated
- Drill Hole Size 4.50 mm
- Approx.Inside Eye (D) 19.00 to 23.00 mm
- Shaft Size Range 17.00 to 24.00 mm
- Approx. Bridge Length (D1) 30 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98335A790
- RPD4-78
- RPD478
