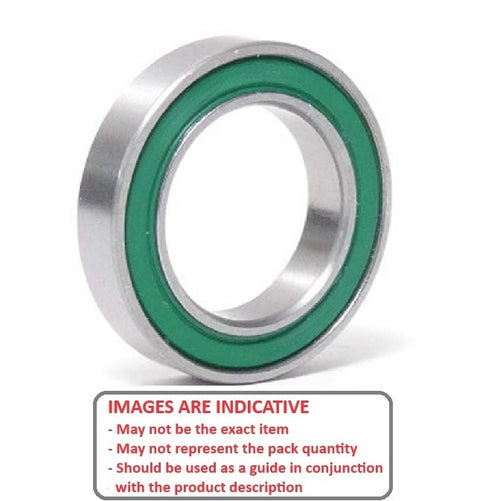

683A-2RG-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
- ID (d)
:
3.000
mm
(Equiv. 0.118 in.) - OD (D)
7.000
mm
(Equiv. 0.276 in.) - Width (B)
3.000
mm
(Equiv. 0.118 in.) - Precision Grade Economy
- Closure Type 2GS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 683A
- Limiting Speed 40698
- Cage Type Standard
- Static Load Rating KGf 10.4
- Dynamic Load Rating KGf 30.4
- Radii 0.10 mm
- Inner Shoulder (UI) 3.85mm
- Outer Shoulder (UO) 6.35 mm
- Number of Balls 8
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type 2RG
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- Duratrax - MT Pro - Bearing 3-7-3mm
- Duratrax - ST Pro - Bearing 3-7-3mm
- Robitronics - Scalpel Pro 1/8 - Bearing 3-7-3mm
- Tamiya - 911 GTI 1-8 Gas - Bearing 3-7-3mm
- Tamiya - F Pro - Bearing 3-7-3mm
- Tamiya - Honda - Bearing 3-7-3mm
- Tamiya - Honda 99T - Bearing 3-7-3mm
- Tamiya - Lotus - Bearing 3-7-3mm
- Tamiya - Merceded 1/8 Gas - Bearing 3-7-3mm
- Tamiya - TAO-3 Series - Bearing 3-7-3mm
- Tamiya - TAO4 Complete - Bearing 3-7-3mm
- Tamiya - TAO4 Upgrade - Bearing 3-7-3mm
- Tamiya - TOA-3R Series - Bearing 3-7-3mm
- Tamiya - Williams - Bearing 3-7-3mm
- Traxxas - Fiero - Bearing 3-7-3mm
Cross References
- Jesa 638-32RS
- WIB 638-3-2RSR
- Jesa 638-3RS
- WIB 638-3-RSR
- BOCA MR73-2GS
- MR732GS
- 63832RSR
- 683A
- 6383RSR
- 683A Basic Size Ref
