SFMR63A-CSN-ZZ-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Flanged - Precision - 440C Stainless440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

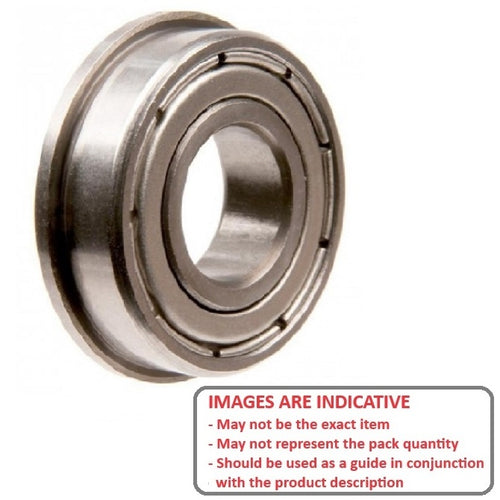

Double shielded flanged economy ceramic-hybrid stainless steel bearing

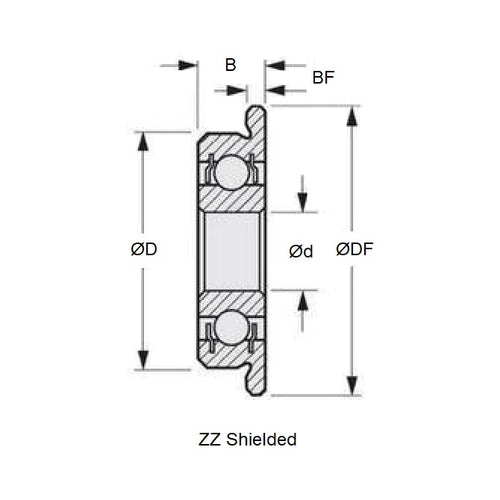

- ID (d) : 3.000 mm
- O.D. (D) 6.000 mm
- Width (B) 2.500 mm
- Flange Diameter (DF) 7.200 mm
- Flange Width (BF) 0.600 mm
- Precision Grade Economy
- Closure Type ZZS
- Bearing Type Radial Flanged
- Material Stainless Steel AISI 440C - Ceramic Si3N4 Balls
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FMR63A
- Limiting Speed 67450
- Cage Type Standard
- Static Load Rating KGf 5.7
- Dynamic Load Rating KGf 16
- Radii 0.10 mm
- Inner Shoulder (UI) 3.70mm
- Outer Shoulder (UO) 5.40 mm
- Number of Balls 8
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Helicopter Parts
- Bergen Machine® - Intrepid Gas - Replacement Bearing
- Century® - Ninja Pro® 30/46 All - Replacement Bearing
- Century® - Ninja Pro® 30/46Upgrade Kit - Replacement Bearing
- Century® - Pro Master Upgrade - Replacement Bearing
- Hirobo® - Lepton EX - Replacement Bearing
- Hirobo® - Shuttle Challenge Upgrade Kit - Replacement Bearing
- Hirobo® - Shuttle Plus - Replacement Bearing
- Hirobo® - Shuttle ZTS Upgrade Kit - Replacement Bearing
- Hirobo® - Shuttle ZX-0402 Upgrade Kit - Replacement Bearing
- Hirobo® - ZTS Upgrade Kit - Replacement Bearing
- JR - Ergo 30/46 - Replacement Bearing
- JR - Ergo 30/46 Complete Kit - Replacement Bearing
- Kyosho® - NEXUS 30 - Replacement Bearing
- MS Composit - Hornet Micro Heli - Replacement Bearing
Cross References
- Shielded Width A SFMR63/2.5
- Shielded SFMR63A / 2
- Shielded Width A SSFMR63/2.5
- Shielded SSFMR63A / 2
- FMR63A Basic Size Ref
