W0030-F-007-001-PT - Datasheet

MBA

Category Information

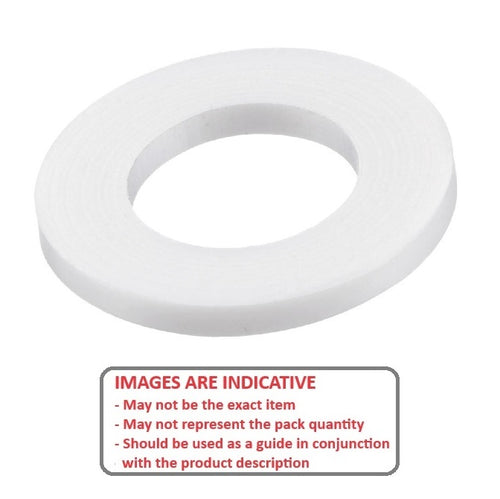

Washers - Flat - Commercial - PTFE

PTFE Commercial Flat Washers. Teflon flat washers selection.

  • Flat washers are available in many different materials, and can be used for spacing and shimming nuts and bolts, bearing shaft and all types of mechanical applications. An expanded range may be available on special order. Please enquire.
  • Flat plain washers distrubute the load of screws and other fasteners, which prevents the fastener from indenting the material being fastened. Commercial washers have wide tolerances, whilst precision washers have precise tolerances.
  • Washers also increase the surface area, reducing the risk of loosening. Note that the Nominal ID is the shaft, bolt or screw size that the washer is designed to fit over. The washer ID will have clearance on that size. See tolerances and standards listed.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

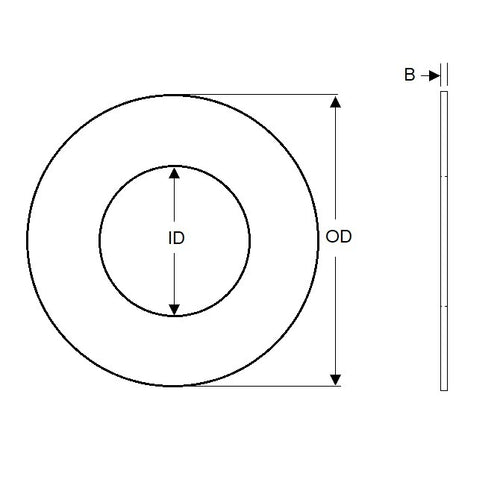

  • Nominal Inside Diameter (d) : 3.00 mm + 0.13 / + 0.26
    (Equiv. 0.118 in.)
  • Nominal Outside Diameter (D) 6.56 mm
    (Equiv. 0.258 in.)
  • Thickness (T) 0.13 mm
    (Equiv. 0.005 in.)
  • Grade Commercial
  • Actual ID (Ref) 3.13 mm
  • Material PTFE
Country of Origin: AU

Product Compliance and Data

Additional Resources

Applications & Uses

  • Dental Handpiece Parts
  • Dabi Atlante - MS-L-350 - Teflon Washer-Spacer
  • Dental Washers - Several - PTFE Washers 0.12mm Thick
  • NSK - Alpha Air and Lite - PTFE Washer-Spacer
  • NSK - NTF TU03 - PTFE Washer-Spacer
  • NSK - Optica - PTFE Washer-Spacer
  • NSK - Pana Air Mini MU03 Red Band - PTFE Washer-Spacer
  • NSK - Phatelus II and III SU03 - TU03 - MU03 - PTFE Washer-Spacer
  • NSK - Phatelus SU03 - TU03 - MU03 - PTFE Washer-Spacer
  • NSK - Vip-Air - PTFE Washer-Spacer
  • W.H. - Top Air - Top LITE 700 and 800 Series Incl 898 - PTFE Washer-Spacer

Cross References

  • BSD FWR-T064
  • FWRT064
