Miniature Bearings Australia
RP030-0350-4 - Datasheet
MBA
Category Information

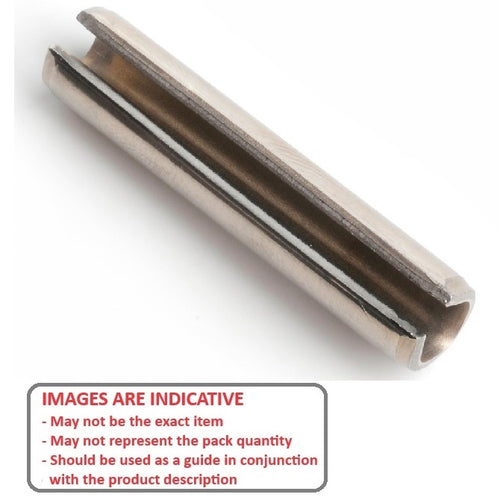

Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
3.00
mm
(Equiv. 0.118 in.) - Length (L)
35.00
mm
(Equiv. 1.378 in.) - Free Diameter
3.30
mm
(Equiv. 0.13 in.) - Thickness (S) 0.60 mm
- Chamfer Length (cL) 0.50-0.70 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 303/304 PV (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPCM3P-030-035
- NoCor SPMS-030-035-304SS
- SPMS030035304SS
- SPCM3P030035
- SRP3-35
- SRP335
