CCE-00300-C - Datasheet
MBA
Category Information

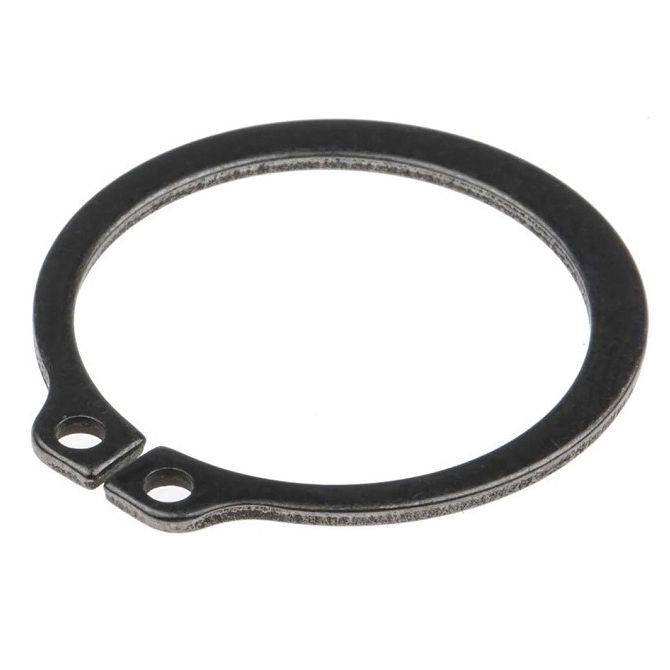

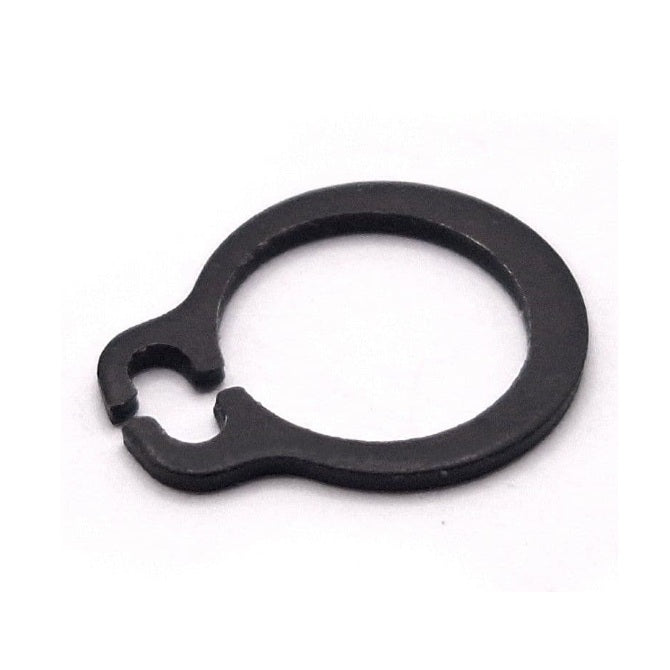

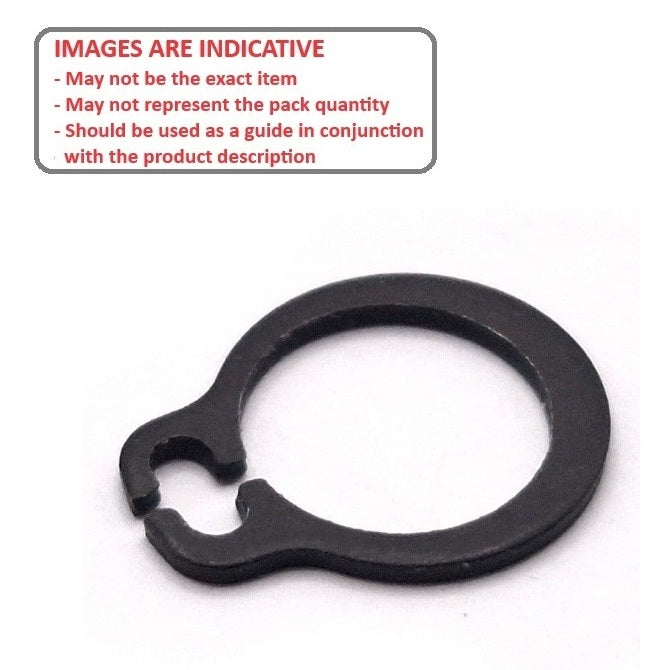

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
3.00
mm
(Equiv. 0.118 in.) - Clip Thickness (T)
0.40
mm
+ 0.00 / - 0.04
(Equiv. 0.016 in.) - Groove Dia. (Dg)
2.80
mm
+ 0.00 / - 0.05
(Equiv. 0.11 in.) - Approx. Loose Circlip ID (A) 2.70 mm
- Groove Width (W) 0.50 mm
- Clearance on Shaft (C1) 7.00 mm
- Clearance in Groove (C1) 6.60 mm
- Min. Lug Diameter (h) 1.00 mm
- Min. Extension (n) 0.30
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-003
- 98541A111
- Seeger A-003
- Seeger A3-BLS
- Seeger A3X0.4
- Bossard BN818-003
- Waldes D1400-003
- NoCor DSH-003
- Rotor Clip DSH-003
- MD0471MQB003
- DSH003
- CCE00300C
- 1400-0030
- 14000030
- D1400003
- D14000030
- D1400-0030
- A003
- A3BLS
- 471003
- BN818003
