PSP-030-016H-S420 - Datasheet
MBA
Category Information

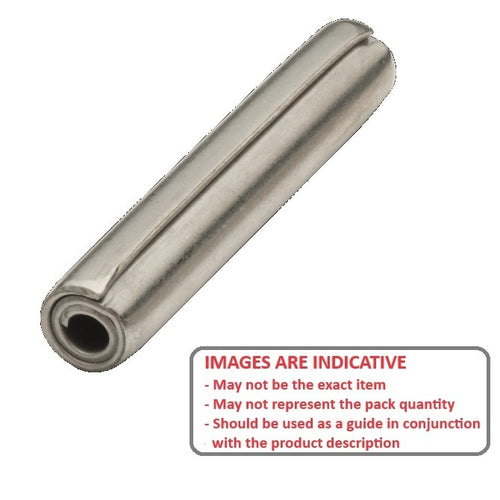

Pins - Coiled - Stainless - Heavy DutyHeavy Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
3.00
mm
(Equiv. 0.118 in.) - Length
16.00
mm
+/- 0.50
(Equiv. 0.63 in.) - Drill Size
3.00 - 3.10
mm
(Equiv. 0.118 in.) - Loose Diameter 3.12 - 3.25 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness HV460-560
- Material Stainless Steel AISI 420C Oiled Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPCMSP-030-016H
- SPCMSP030016H
