PSP-030-012-C - Datasheet
MBA
Category Information

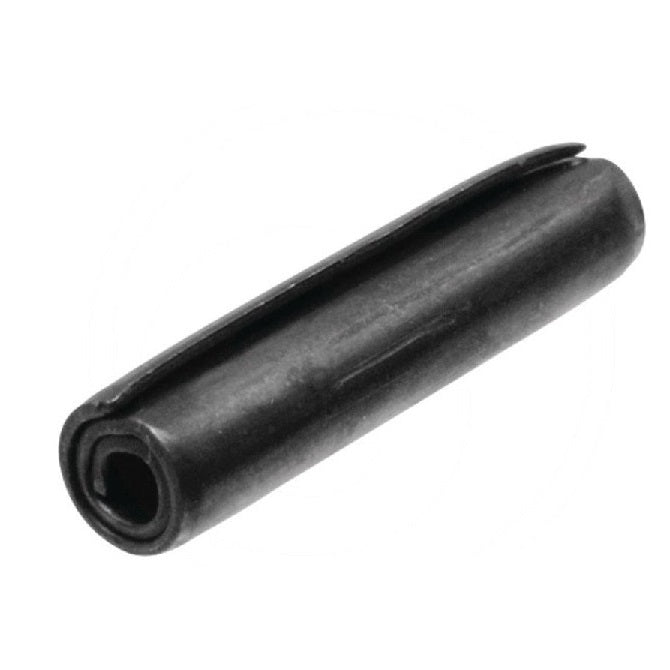

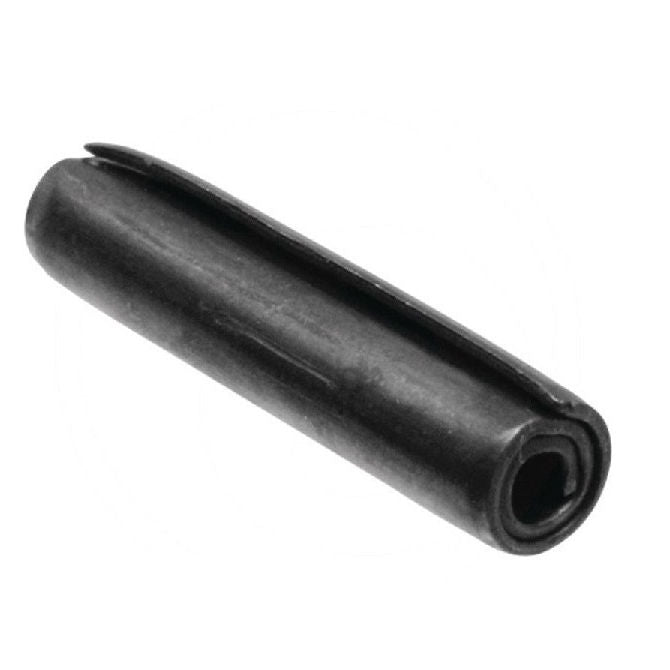

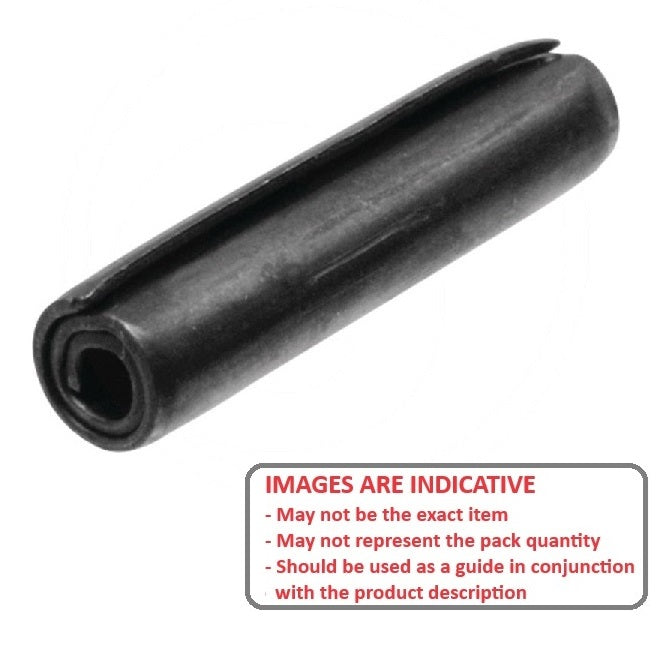

Pins - Coiled - Steel - Standard DutyStandard Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8750 Standard Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data

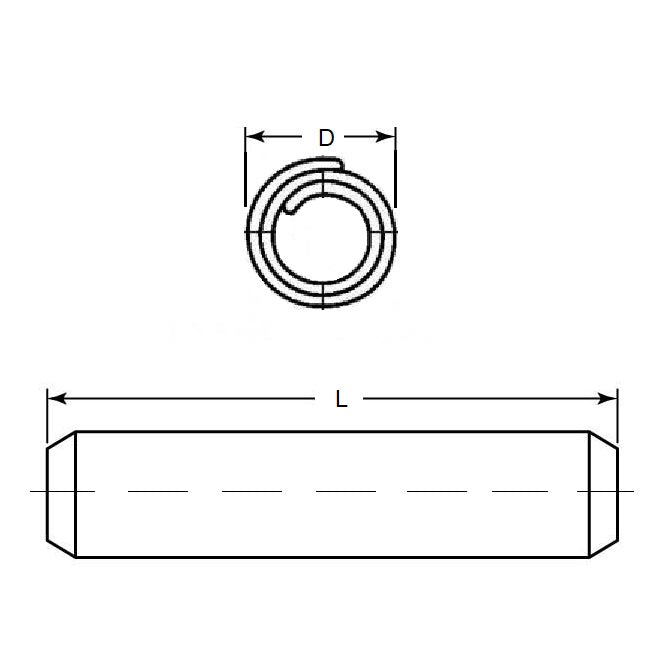

- Nominal Hole Diameter
:
3.00
mm
(Equiv. 0.118 in.) - Length
12.00
mm
+/- 0.50
(Equiv. 0.472 in.) - Drill Size
3.00 - 3.10
mm
(Equiv. 0.118 in.) - Loose Diameter 3.15 - 3.30 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness RC 46-53 (HV 420 to 545)
- Double Shear Strength Min. 6 Kn
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 91612A224
- NoCor SPCM-030-012
- SPCM030012
- SEP312
- SEP3-12
