RP030-0100-Z - Datasheet
MBA
Category Information

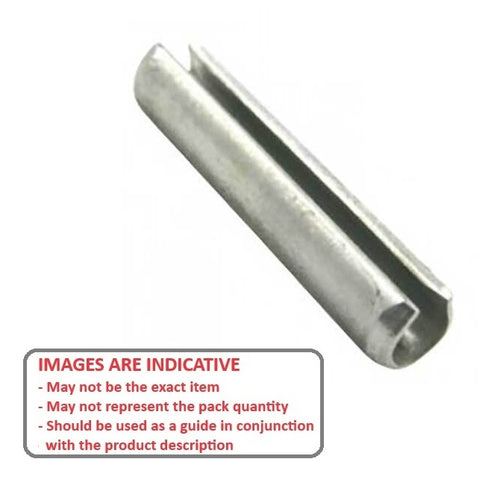

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
3.00
mm
(Equiv. 0.118 in.) - Length (L)
10.00
mm
(Equiv. 0.394 in.) - Free Diameter
3.30
mm
(Equiv. 0.13 in.) - Thickness (S) 0.65 mm
- Chamfer Length (cL) 0.20-1.00 mm
- Chamfer Diameter (cD) 2.9 mm
- Standard ASME B18.8.4M Type B
- Type Standard
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPMZ-030-010
- NoCor SPMZ-030-010-A
- Brighton Best V81105
- SPMZ030010A
