CSN-0396-080 - Datasheet
MBA
Category Information

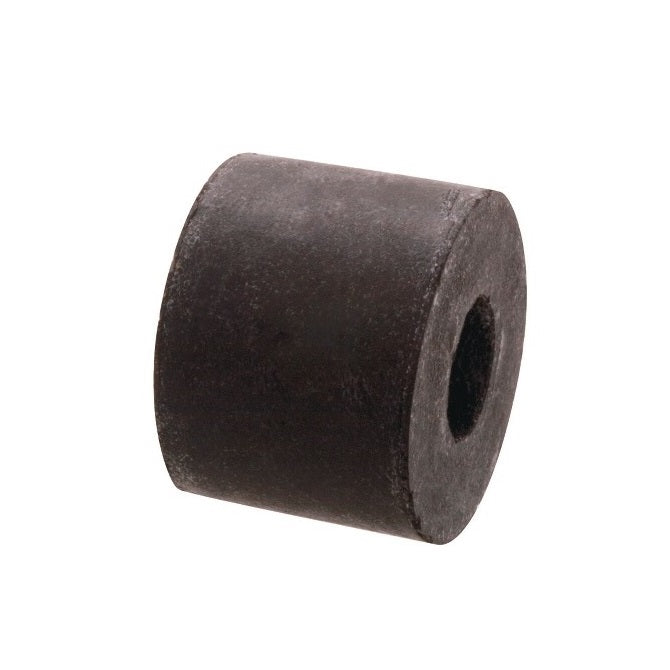

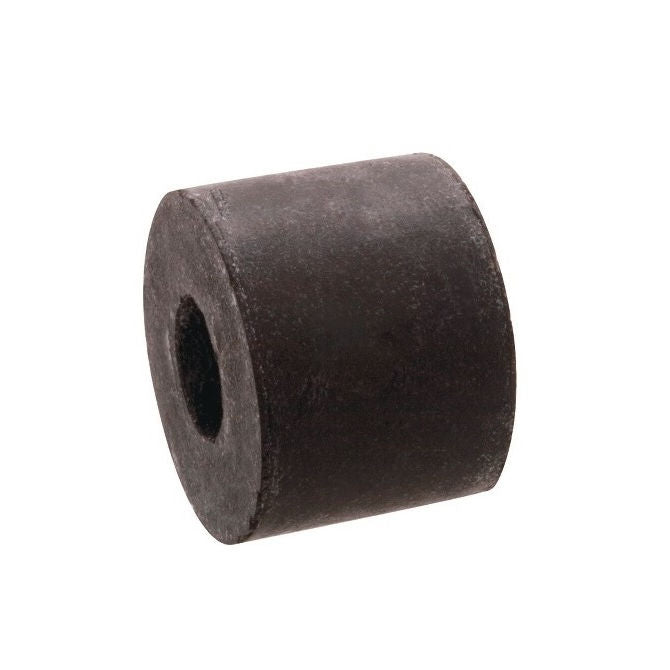

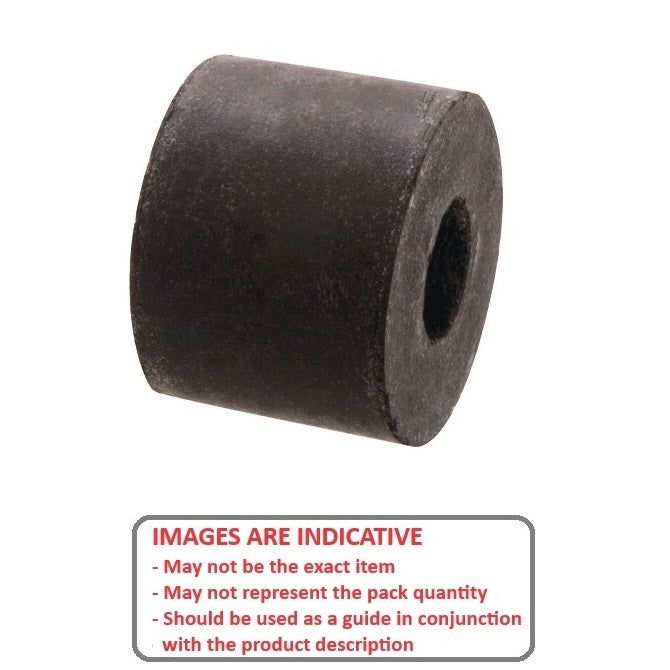

Mounts - Bumpers - Neoprene SpringsNeoprene Springs Bumpers Mounts. Neoprene elastomer springs have proven to be the safest, most efficient material for punching, stamping and drawing dies.
- An expanded range may be available on special order. Please enquire.
- Major advantages include high loads, increased durability, better performance, no maintenance and long life.
Product Data

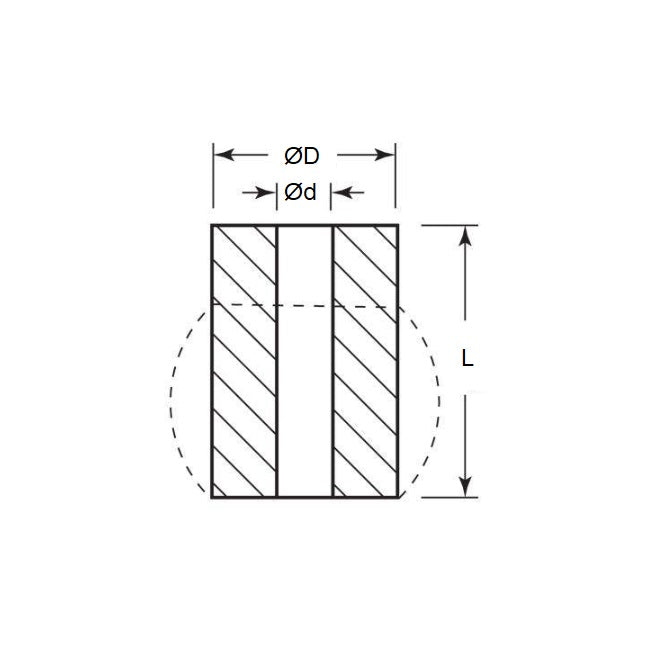

- Outside Diameter (A)
:
39.60
mm
(Equiv. 1.559 in.) - Inside Diameter (B)
13.5
mm
(Equiv. 0.531 in.) - Free Length (L)
80.2
mm
(Equiv. 3.157 in.) - Spring Rate 130.3 N/mm Deflection +/- 20 Perc
- Max. Rec. Deflection 27.94 mm
- Approx. Load at Max Deflection 309.8 Kg
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- BES3544
- BES-3544
