CCE-03967-C - Datasheet
MBA
Category Information

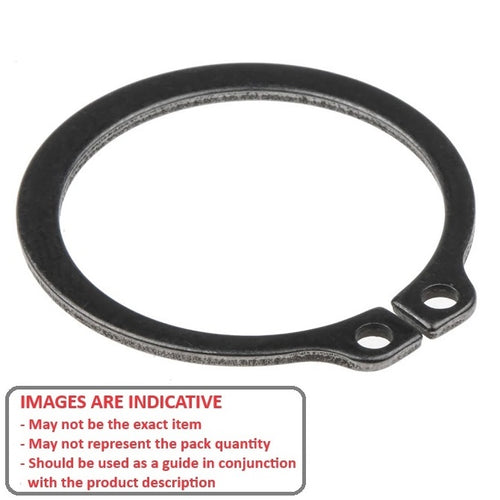

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
39.67
mm
(Equiv. 1.562 in.) - Clip Thickness (T)
1.58
mm
+/- 0.127
(Equiv. 0.062 in.) - Groove Dia. (Dg)
37.29
mm
+/- 0.076
(Equiv. 1.468 in.) - Approx. Loose Circlip ID (A) 36.73 mm
- Groove Width (W) 1.73 mm
- Clearance on Shaft (C1) 49.53 mm
- Clearance in Groove (C1) 46.99 mm
- Min. Lug Diameter (h) 2.54 mm
- Min. Extension (n) 3.76
- Standard MIL-16624
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97633A390
- 97633A574
- NoCor SH-156
- N14000156
- N1400-0156
- SH156
- A9Q27-156
- A9Q27156
