Miniature Bearings Australia
BL-03810-NY - Datasheet
MBA
Category Information

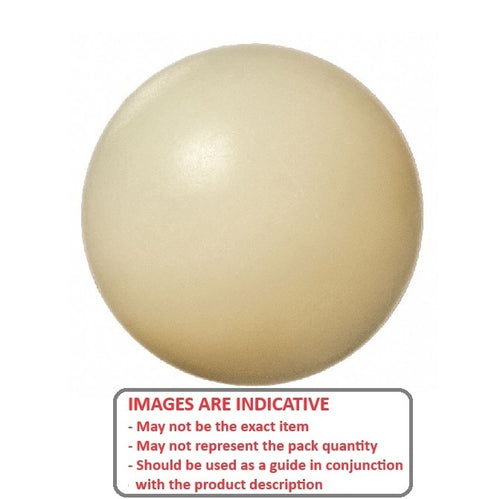

Balls - Plastic - NylonNylon Plastic Balls. Resists alkalies, weak acids and most organic solvents. Low water absorption
- Plastic ball grades are not the same as those for precision balls
- Nylon (Polyamide 6/6).
- Unpolished
- Specific Gravity: 1.14.
Product Data

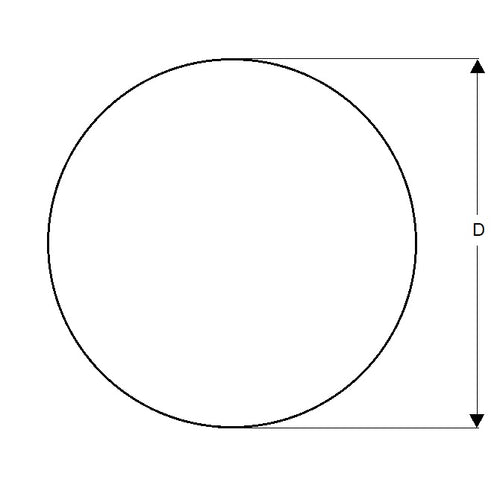

- Diameter (D)
:
38.10
mm
+/- 0.051
(Equiv. 1.5 in.) - Material Nylon (Polyamide 6/6)
- Precision Grade 3
- Hardness 108 Rockwell R
- Properties Resists alkalies, weak acids and most organic solvents.
- Colour Off White
- Specific Gravity 1.14
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
