Miniature Bearings Australia
CP-381K-381K-67-098-R1-SC - Datasheet
MBA
Category Information

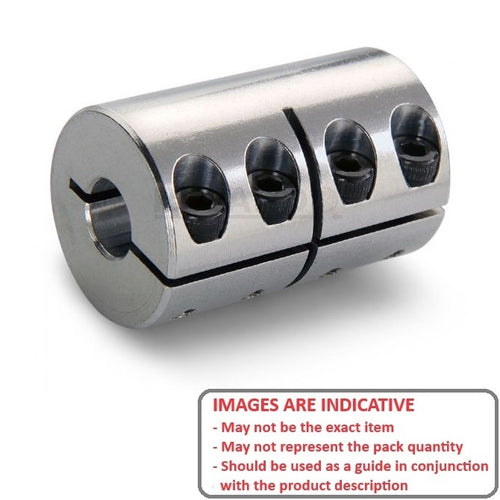

Couplings - Rigid - Clamp - 1 Piece - SteelSteel 1 Piece Clamp Rigid Couplings. 12L14 Steel
- An expanded range may be available on special order. Please enquire.
Product Data

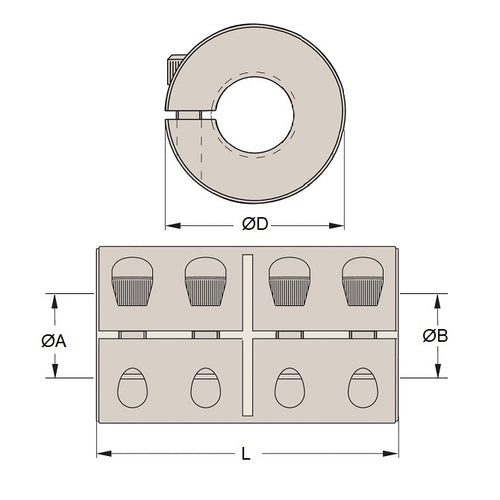

- Bore (b1) : 38.100 (Keyed) mm
- Bore (b2) Keyed 38.1 mm
- OD (D) 66.670 mm
- Length (L) 98.420 mm
- Features 9.525 Keyway
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 61005K611
- Reid Tool® CC-123
- CC123
