LCSQCL-0381-Q - Datasheet
MBA
Category Information

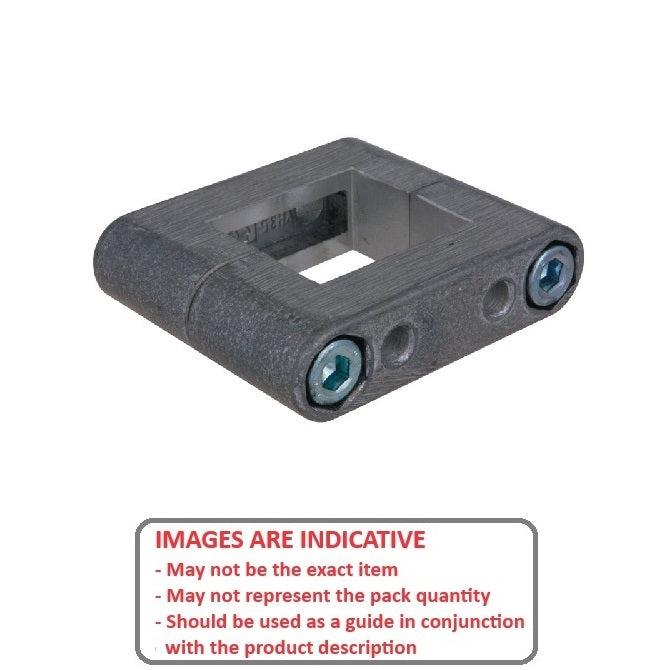

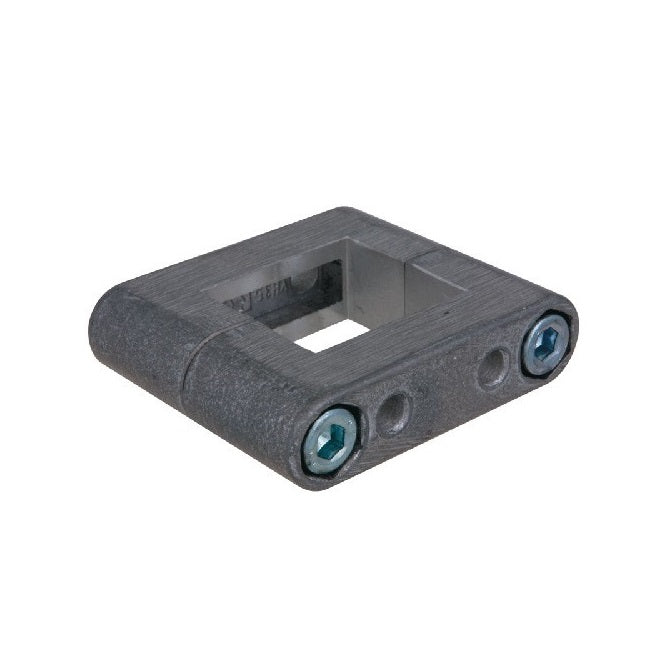

Linear - Housing Clamps SquareHousing Clamps Square Linear. Square Housing Clamps for Square Linear Shafting.
Product Data

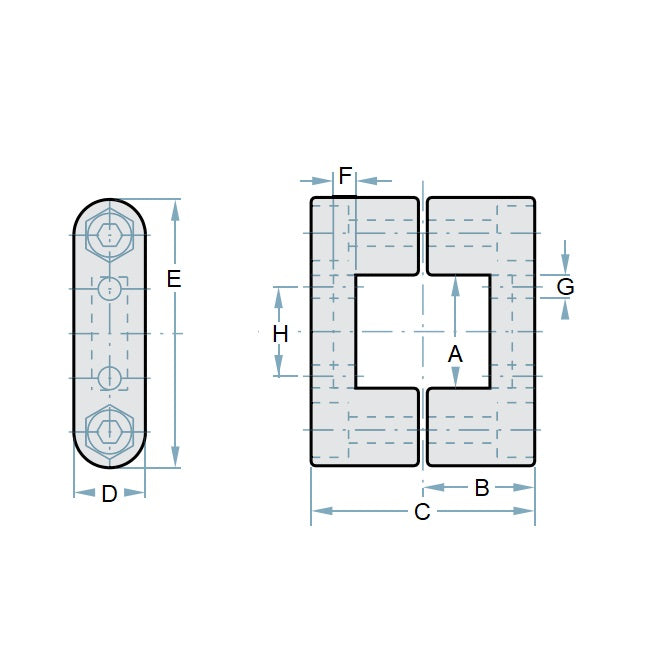

- Suitable Shaft Diameter
:
38.10
mm
(Equiv. 1.5 in.) - Type Square Clamp
- B
33.99
mm
(Equiv. 1.338 in.) - C 68.00 mm
- D 19.99 mm
- E 75.01 mm
- F 7.01 mm
- G 6.50 mm
- H 75.00 mm
Product Compliance and Data
Additional Resources
Cross References
- 60255K35
- PBC495
- PBC-495
