LCSQCL-0381-F - Datasheet
MBA
Category Information

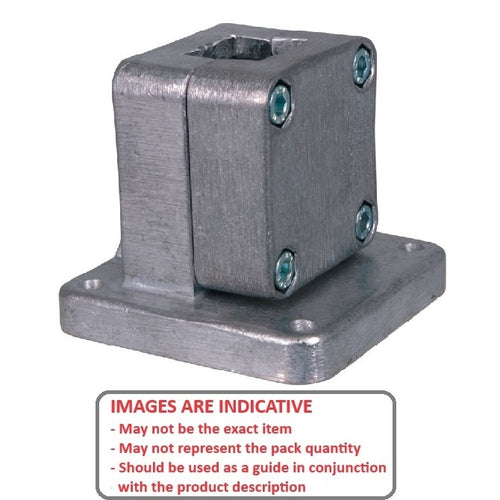

Linear - Housing Clamps SquareHousing Clamps Square Linear. Square Housing Clamps for Square Linear Shafting.
Product Data

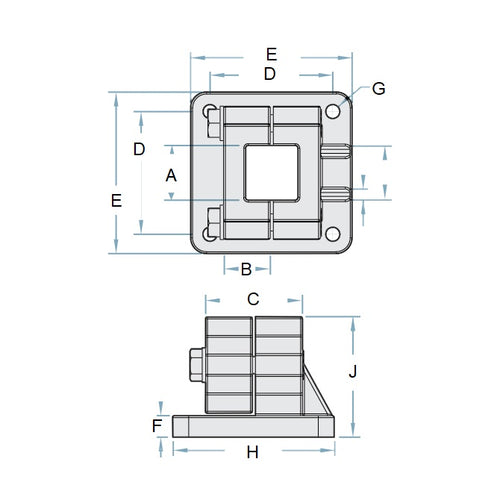

- Suitable Shaft Diameter
:
38.10
mm
(Equiv. 1.5 in.) - Type Flanged Base
- B
33.99
mm
(Equiv. 1.338 in.) - C 61.98 mm
- D 70.00 mm
- E 76.00 mm
- F 14.00 mm
- G 6.50 mm
- H 95.00 mm
- J 85.01 mm
Product Compliance and Data
Additional Resources
Cross References
- 60255K33
- PBC-505
- PBC505
