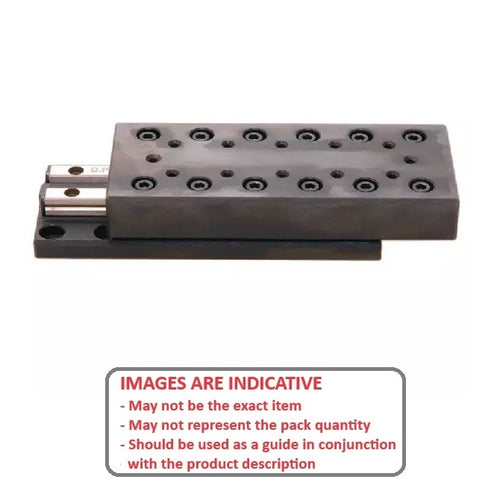

Linear - Cross Roller Slide Tables Standard - AluminiumAluminium Cross Roller Slide Tables Standard Linear. Crossed roller slide tables are factory assembled and ready to install. They use crossed roller bearings to provide very precise linear motion with low friction and high support stiffness for the load.
- Applications include precision instruments, office and communications equipment, surface grinders, tool grinders, assembly fixtures and anywhere precise linear positioning is required.
- Precision ground v grooved ways and rollers provide high accuracy and load capacity. Withstands force in any direction from alternately crossed rollers at 45 deg angles.
- Straight line accuracy 0.0025mm per 25mm travel (0.0001 inch per inch). 0.0025mm position repeatability.
- Each table consists of a one piece base, a one piece table and a pair of linear bearings.
Product Data
- Travel
:
38.100
mm
(Equiv. 1.5 in.) - Load Capacity 52 Kg
- Length
65
mm

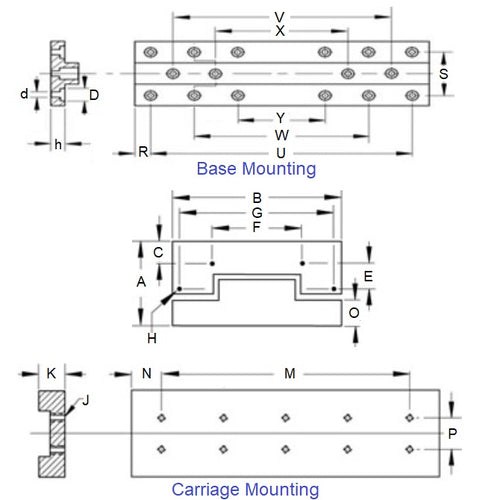

(Equiv. 2.559 in.) - Height and Width (A/B) 21 / 40 mm
- Base Plate Thickness (C) 6.502 mm
- Number of Hole (Base/Carriage) 4 / 6 mm
- U / W / V / S 55.0 / - / - / 30.0 mm
- R 5.004 mm
- Base Thread 6.12 x 3.80
- Carriage Thread 6-32 UNC x 8.00
- P 15.0
- Hole Spacing from End (N) 17.5 mm
- Material Aluminium
