LOHP-0381-229-TSS - Datasheet

MBA

Product Data

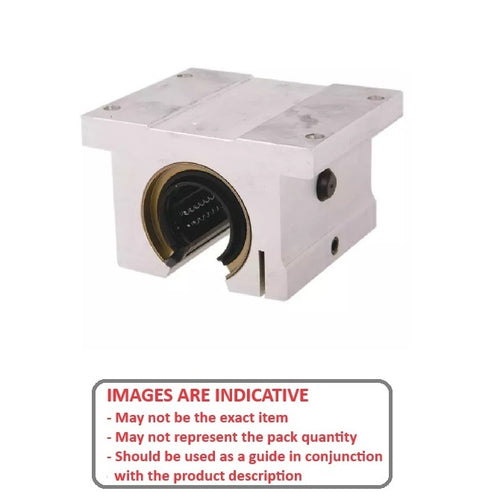

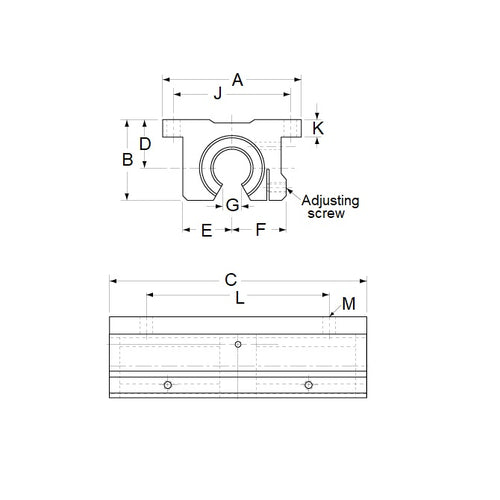

• Nominal Diameter : 38.100 mm
  (Equiv. 1.5 in.)
• Overall Length (C) 228.600 mm
  (Equiv. 9 in.)
• Height (B) 74.676 mm
  (Equiv. 2.94 in.)
• Width (A) 120.650 mm
• Centre Height (D) 44.450 mm
• Centre Width (E) 44.450 mm
• Centre Width (F) 47.752 mm
• Opening Distance (G) 18.796 mm
• Bolt Centres (J x L) 104.775 x 63.500 mm
• Dynamic Load Capacity 1760 kgf
• Bolt Hole (M) 7.112 mm
• Flange Thickness (K) 12.700 mm
