IP-240RS - Datasheet
MBA
Category Information

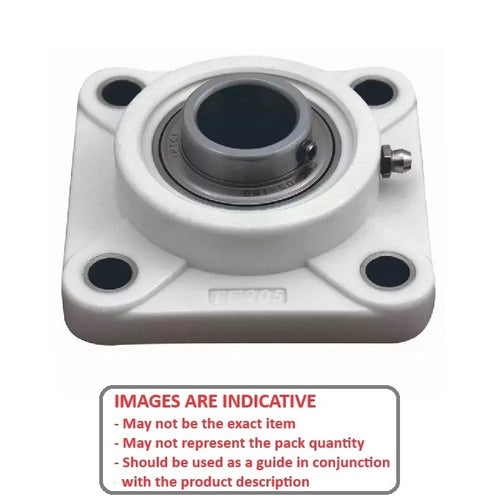

Housing and Bearing Assembly - Flanged 4 Bolt - Rigid - Plastic and SteelPlastic and Chrome Steel Non Aligning Flanged 4 Bolt Housing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.
- Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
- Excellent mechanical, thermal and electrical properties.
- Operational temperature -20 to +100 oC
Product Data
- Nominal Shaft Size
:
38.100
mm

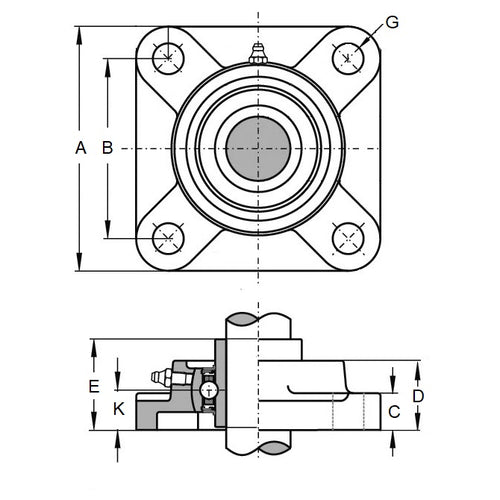

(Equiv. 1.5 in.) - Base Height (C)
16.662
mm
(Equiv. 0.656 in.) - Length (A)
130.175
mm
(Equiv. 5.125 in.) - Overall Height (E) 53.162 mm
- Housing Height (D) 37.306 mm
- Bolt Hole Size (G) 13.097 mm
- Material Thermoplastic and Chrome Steel
