CSC-365-019-16-M - Datasheet
MBA
Category Information

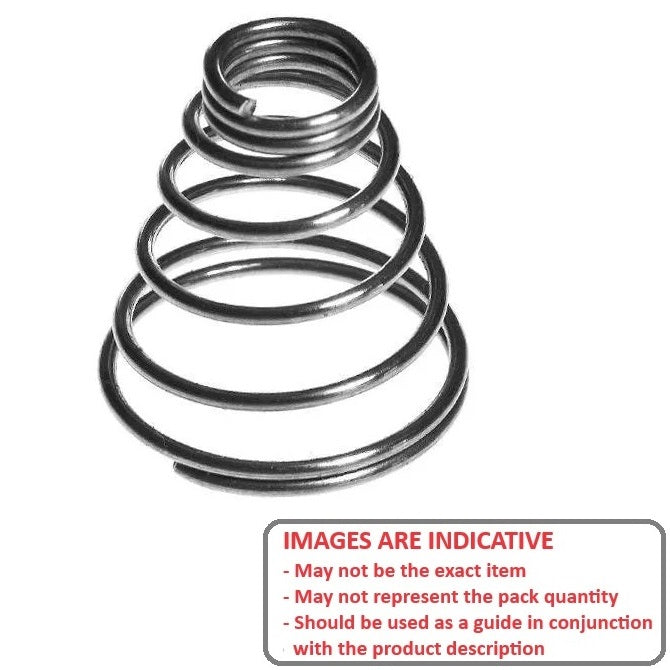

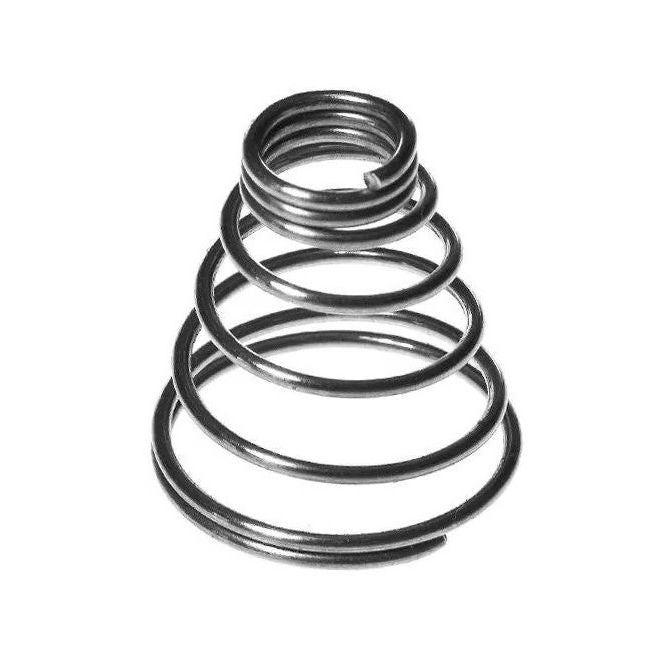

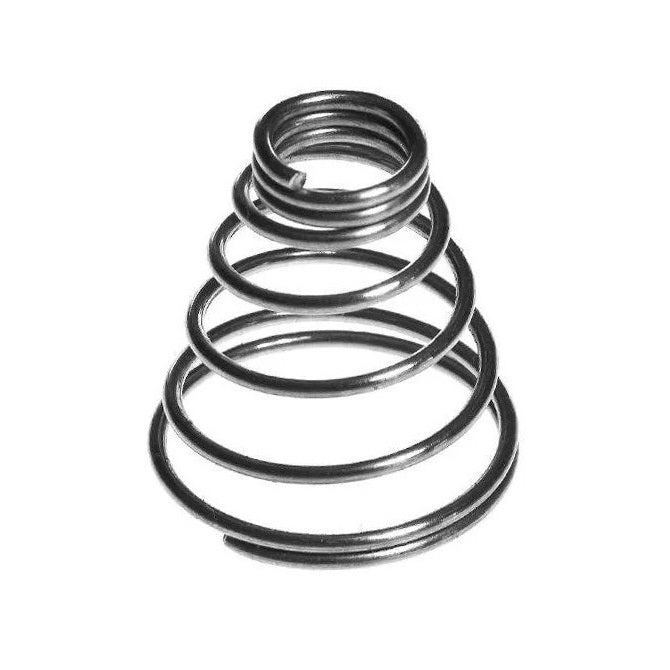

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate

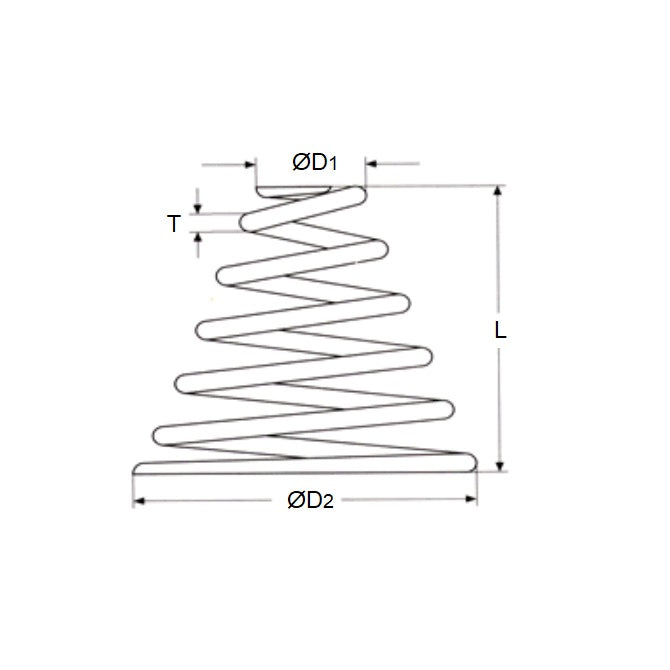

Product Data
- Large End OD
:
36.50
mm
(Equiv. 1.437 in.) - Free Length
19.1
mm
(Equiv. 0.752 in.) - Small End OD
28.6
mm
(Equiv. 1.126 in.) - Inside Diameter Clearance 25.4 mm
- Wire Thickness 1.57 mm
- Rate 0.1 kg/mm
- Inside Diameter 25.4 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX-50
- CX50
