S6007-ZZ - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

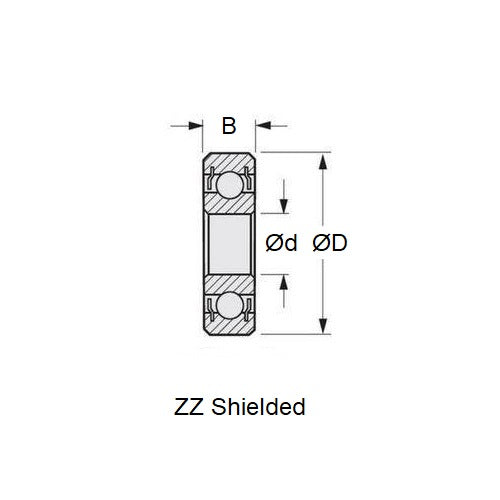

- ID (d)
:
35.000
mm
+ 0.000 / - 0.012
(Equiv. 1.378 in.) - OD (D)
62.000
mm
+ 0.000 / - 0.013
(Equiv. 2.441 in.) - Width (B)
14.000
mm
+ 0.000 / - 0.120
(Equiv. 0.551 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6007
- Limiting Speed 11000
- Cage Type Rivetted
- Static Load Rating KGf 1052
- Dynamic Load Rating KGf 1628
- Radii 1.00 mm
- Inner Shoulder (UI) 44.00mm
- Outer Shoulder (UO) 57.05 mm
- Number of Balls 11
- Clearance CN (6 to 20)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
