P-025T-035-132A - Datasheet
MBA
Category Information

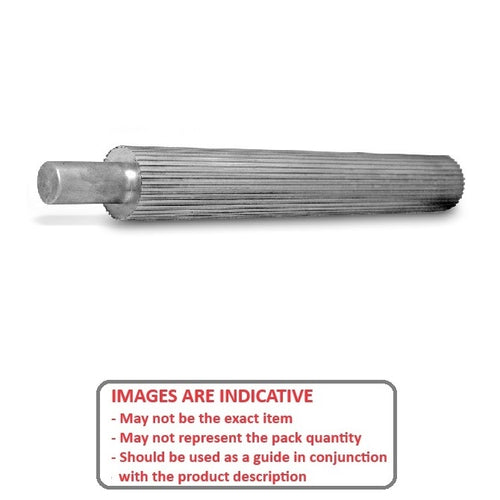

Pulleys - Metric Timing Stock - 2.500mm Pitch T2.5 Aluminium2.500mm Pitch T2.5 Aluminium Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 35

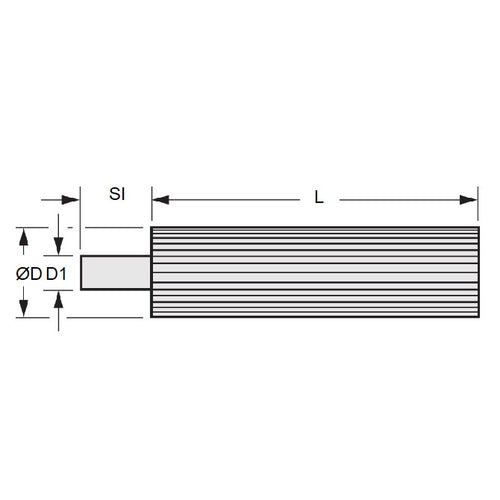

- Min. Usable Length (L)
132.0
mm
(Equiv. 5.197 in.) - Pitch Diameter (PD)
27.95
mm
(Equiv. 1.1 in.) - Outside Diameter (OD) 27.35 mm
- Shank Diameter (D1) 12.70 mm
- Shank Length (Sl) 20.0 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 35T2.5-PS132A
- A6A31M035T13
- 35T25PS132A
