IP-283RS - Datasheet
MBA
Category Information

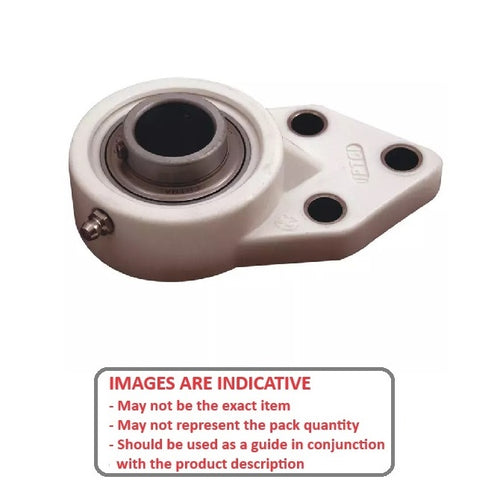

Housing and Bearing Assembly - Offset - Thermoplastic and SteelThermoplastic and Chrome Steel Offset Housing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.
- Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
- Excellent mechanical, thermal and electrical properties.
- Operational temperature -20 to +100 oC
Product Data
- Inside Diameter
:
35.000
mm

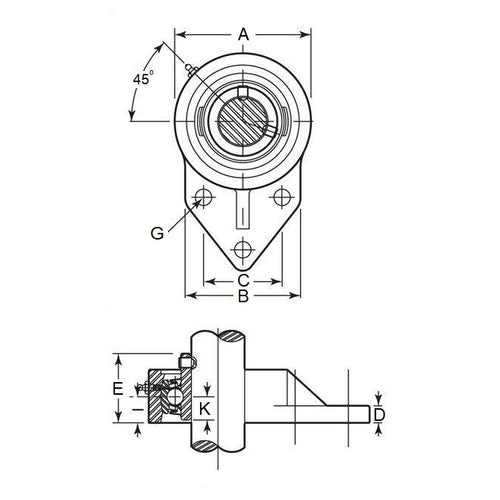

(Equiv. 1.378 in.) - Centre Height (A)
95.000
mm
(Equiv. 3.74 in.) - Length (B)
89.000
mm
(Equiv. 3.504 in.) - Width (C) 50.800 mm
- Foot Height (D) 16.000 mm
- Bolt Centres (E) 45.000 mm
- Bolt Hole Size (G) 13.100 mm
- Height (H) 17.500 mm
