6707-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Standard single row radial ball bearings.

Product Data

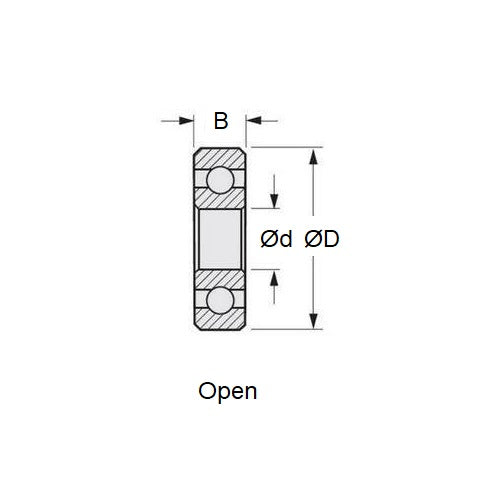

  • ID (d) : 35.000 mm
    (Equiv. 1.378 in.)
  • OD (D) 44.000 mm
    (Equiv. 1.732 in.)
  • Width (B) 5.000 mm
    (Equiv. 0.197 in.)
  • Precision Grade Economy
  • Closure Type Open
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 6707
  • Limiting Speed 4655
  • Cage Type Standard
  • Static Load Rating KGf 159
  • Dynamic Load Rating KGf 180
  • Radii 0.30 mm
  • Inner Shoulder (UI) 38.00mm
  • Outer Shoulder (UO) 42.20 mm
  • Number of Balls 26
  • Clearance CN
  • Precision Grade ECO
  • Closure Type Open
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-E6707
  • CE6707
  • 6707 Basic Size Ref
