Miniature Bearings Australia
DJK-035 - Datasheet
MBA
Category Information

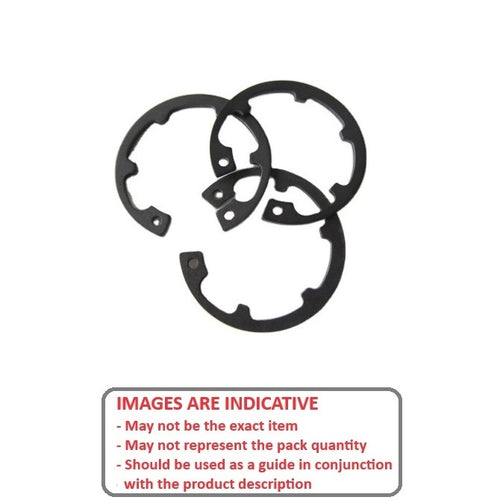

Retaining Rings - Internal - Circlips - TabbedTabbed Circlips Internal Retaining Rings. DIN984 / D2000 / Seeger JK. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Internal tabs are concentrically positioned for a concealed assembly.
- Tabs act as spacers for securing machine components.

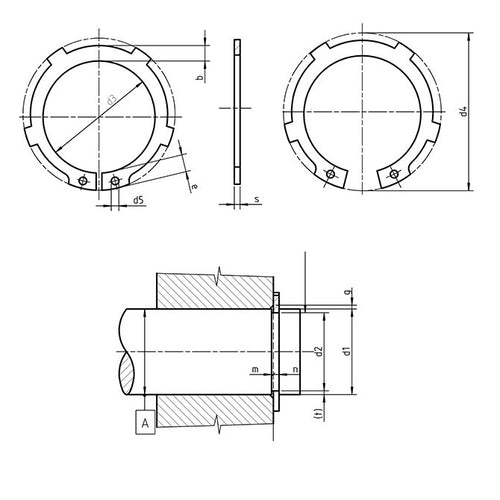

Product Data
- Housing Bore (B)
:
35.00
mm
(Equiv. 1.378 in.) - Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.) - Groove Dia. (Dg)
37.25
mm
+ 0.00 / - 0.06
(Equiv. 1.467 in.) - Approx. Loose Circlip OD (Dr) 37.55 mm
- Radial Wall Max. (b) 3.60 mm
- Groove Width (W) 1.60 mm
- Tool PRS-I018
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Seeger JK35-BLS
- Seeger JK35X1.2
- Seeger JK35X1.5
- 2000035
- 2000-035
- JK35BLS
- D2000035
- D2000-035
