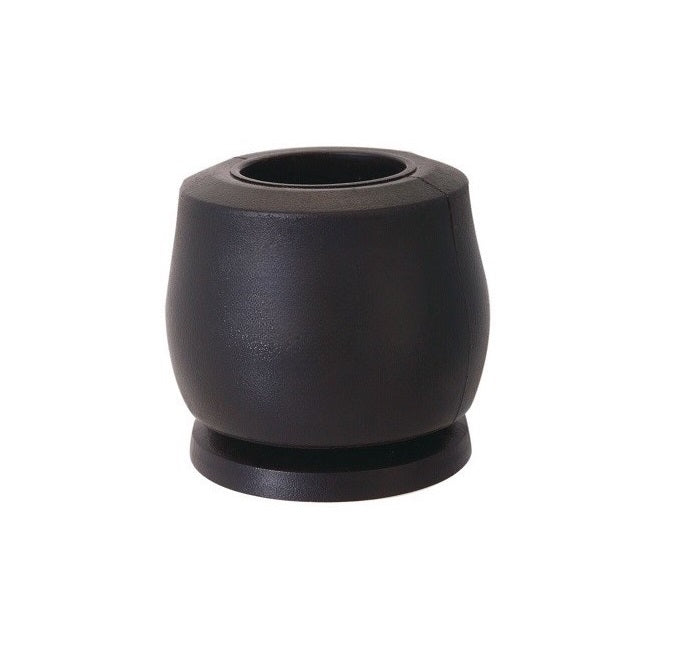

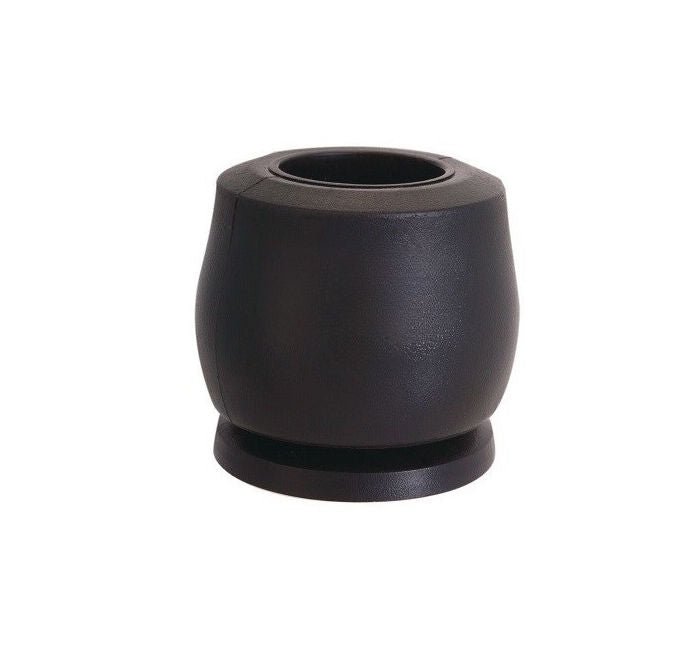

GBA-105SRS - Datasheet
MBA
Category Information
Bumpers - Elastomer - Axial - Medium Energy - Low ReactionLow Reaction Medium Energy Axial Elastomer Bumpers. Elastomer bumpers provide excellent resistance to chemicals and humidity. 20 times greater durability than urethane.
- 10 greater durability than rubber and 500 times greater than steel coiled springs. Also see Mounts - Buffers
- Maintains excellent resilience at extreme temperatures and remains flexible with no material degradation between -62 oC and +148 Deg C (-80 Deg F and +300 Deg F)
- Mounting screws not included.
Product Data
- Peak Force : 3100 N
- Free Height (A)
37.6
mm
+/- 1.2
(Equiv. 1.48 in.) - Free Bulge
36.6
mm
+/ - 1.2
(Equiv. 1.441 in.) - Solid Height (B) 19.3 mm
- Base Diameter 34.3 mm +/- 0.8
- Wrench Opening (G) 20.8 mm +/- 0.5
- Mounting Hole (F) 7.8 mm
- Bulge at Solid Height 50.5 mm
- Material Elastomer
