GBR-7RS - Datasheet
MBA
Category Information

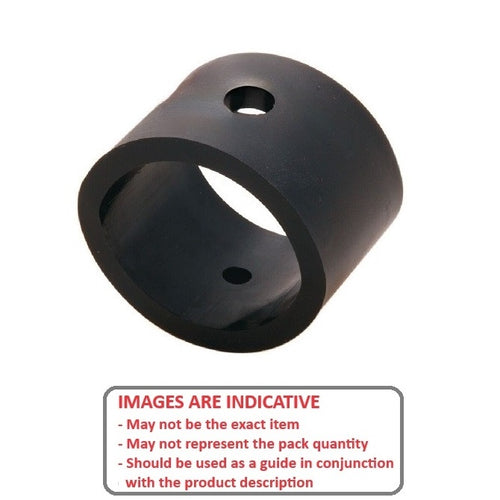

Bumpers - Elastomer - Radial - Low Energy - Longer - Soft StopSoft Stop Longer Low Energy Radial Elastomer Bumpers. Elastomer bumpers provide excellent resistance to chemicals and humidity. 20 times greater durability than urethane.
- 10 greater durability than rubber and 500 times greater than steel coiled springs. Also see Mounts - Buffers
- Maintains excellent resilience at extreme temperatures and remains flexible with no material degradation between -62 oC and +148 Deg C (-80 Deg F and +300 Deg F)
- Mounting screws not included.
Product Data
- Peak Force : 2125 N

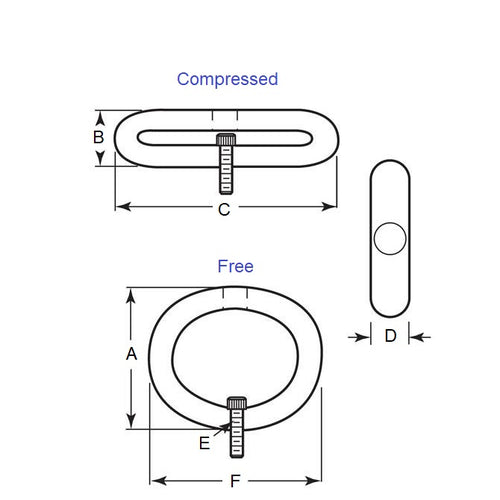

- Free Height (A)
67.3
mm
+/- 2.0
(Equiv. 2.65 in.) - Free Bulge
76.2
mm
+/ - 2.3
(Equiv. 3 in.) - Solid Height (B) 21.6 mm
- Width 45.7 mm +/- 0.8
- Wrench Opening 12.2 mm +/- 0.5
- Mounting Hole (E) 7.1 mm
- Bulge at Solid Height 102.4 mm
- Material Elastomer
