G099B-033-M3-190-160-A-P - Datasheet
MBA
Category Information

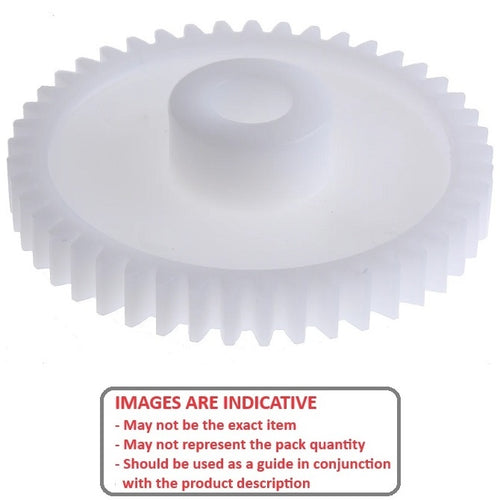

Gears - Spur - Hubbed - Module 3 PlasticModule 3 Plastic Hubbed Spur Gears. PCD in mm = No. of Teeth x 3. 20 Degree Pressure Angle
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 3mm per tooth
- Module 1. Approximately 9.42mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

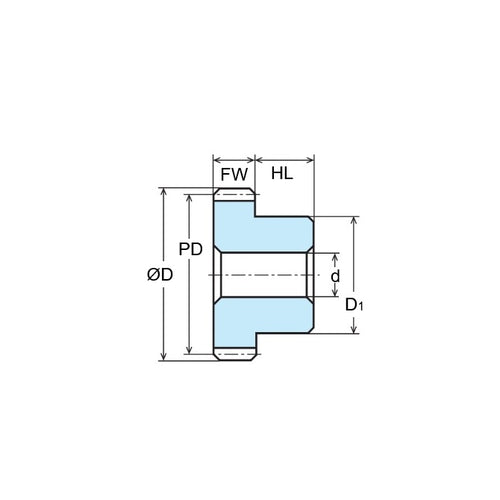

- Number of Teeth : 33
- Pitch Circle Diameter (PD)
99.00
mm
(Equiv. 3.898 in.) - Bore (d)
16.000
mm
(Equiv. 0.63 in.) - Outside Diameter (OD) 105.000 mm
- Face Width (FW) 19.000 mm
- Type Hubbed
- 32.00
- 15.00
- Locking Method None
- Quality Commercial - Molded
- Material Acetal - No Insert
Product Compliance and Data
Additional Resources
Cross References
- G099B33M3190160AP
