Miniature Bearings Australia

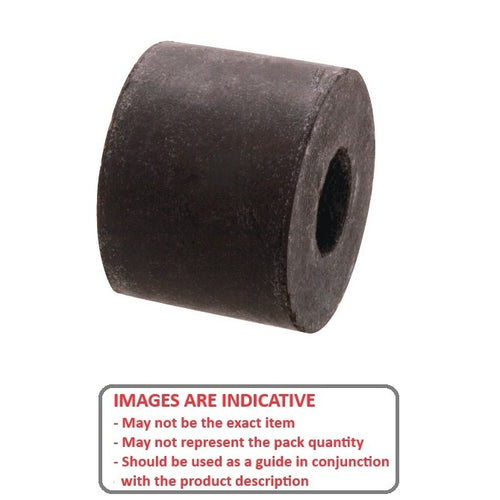

CSN-0318-040 - Datasheet
MBA
Category Information
Mounts - Bumpers - Neoprene SpringsNeoprene Springs Bumpers Mounts. Neoprene elastomer springs have proven to be the safest, most efficient material for punching, stamping and drawing dies.
- An expanded range may be available on special order. Please enquire.
- Major advantages include high loads, increased durability, better performance, no maintenance and long life.
Product Data

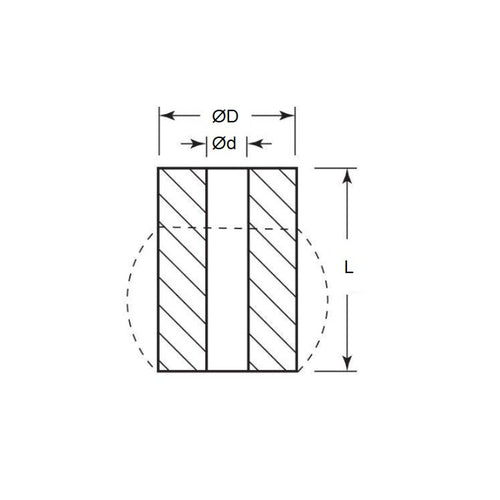

- Outside Diameter (A)
:
31.80
mm
(Equiv. 1.252 in.) - Inside Diameter (B)
13.5
mm
(Equiv. 0.531 in.) - Free Length (L)
40.1
mm
(Equiv. 1.579 in.) - Spring Rate 145.0 N/mm Deflection +/- 20 Perc
- Max. Rec. Deflection 13.97 mm
- Approx. Load at Max Deflection 175.8 Kg
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- BES3531
- BES-3531
