CCE-03175H-C - Datasheet
MBA
Category Information

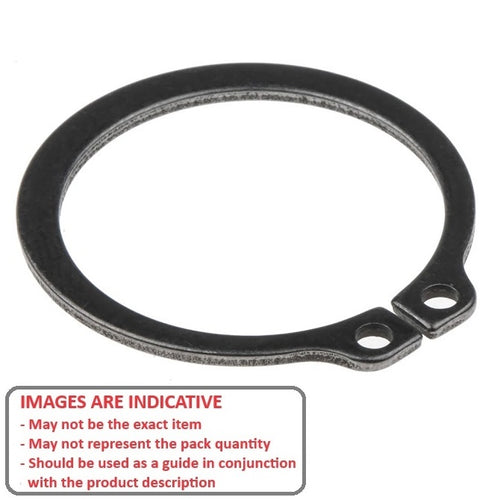

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
31.75
mm
(Equiv. 1.25 in.) - Clip Thickness (T)
2.36
mm
+ 0.051 / - 0.102
(Equiv. 0.093 in.) - Groove Dia. (Dg)
29.82
mm
+/- 0.076
(Equiv. 1.174 in.) - Approx. Loose Circlip ID (A) 29.21 mm
- Groove Width (W) 2.62 mm
- Clearance on Shaft (C1) 43.18 mm
- Clearance in Groove (C1) 41.40 mm
- Min. Lug Diameter (h) 2.31 mm
- Min. Extension (n) 2.90
- Standard MIL-3217
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98585A127
- NoCor SHR-125
- N1460-0125APP
- N14600125APP
- SHR125
