Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

AU-922RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Counterbored

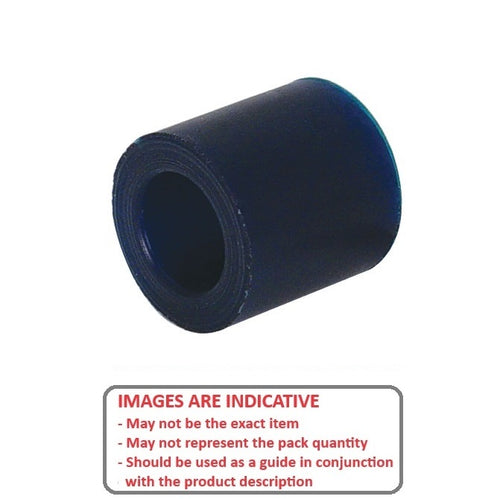

Cylindrical Counterbored Bumpers. With steel core and washer moulded inside. Counterbored hole to accept a socket head cap screw.

  • Rubber bumper designed with a large, shallow hole on one side, allowing a fastener's head to be sunk below the surface for a flush or protected fit.
  • Commonly used for impact protection on machinery, loading docks, and equipment, as well as for vibration dampening and to prevent sliding on surfaces.
  • Also see Mounts - Buffers.

Product Data

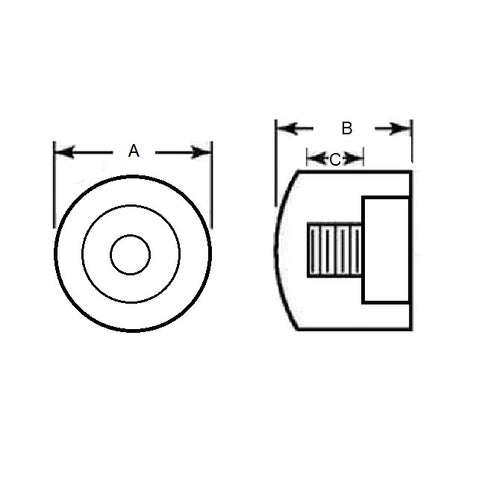

  • Diameter (A) : 31.750 mm
    (Equiv. 1.25 in.)
  • Height (B) 25.400 mm
    (Equiv. 1 in.)
  • Hole Diameter 9.53 mm
    (Equiv. 0.375 in.)
  • End Flat
  • Durometer 90A
  • Colour Blue
  • Material Polyurethane 90A
Country of Origin: US
