AU-961RS - Datasheet
MBA
Category Information

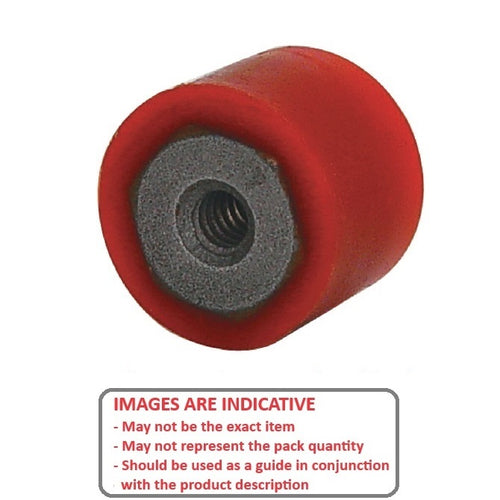

Bumpers - Cylindrical Female ThreadCylindrical Female Thread Bumpers. With steel core.
- Vibration-damping component with a female (internal) threaded hole, which screws onto a bolt or screw to be securely attached.
- Used to protect equipment by absorbing shock, reducing noise, preventing sliding, and minimizing vibration in mechanical, industrial, and automotive applications.
Product Data

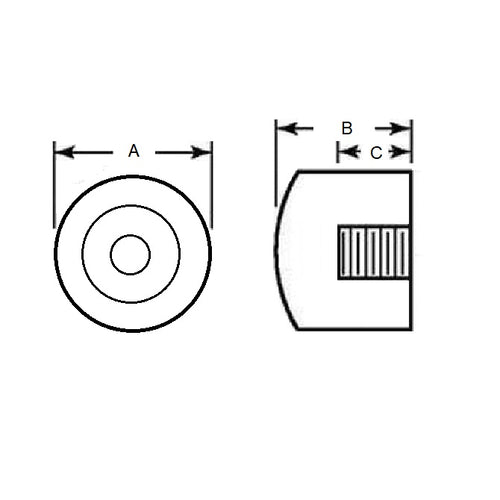

- Diameter (A)
:
31.750
mm
(Equiv. 1.25 in.) - Height (B)
25.400
mm
(Equiv. 1 in.) - Thread 1/4-20 UNC (6.35mm)
- End Flat
- Durometer 95A
- Colour Red
- Material Polyurethane
