LCHF-0318-092-TSS - Datasheet
MBA
Category Information

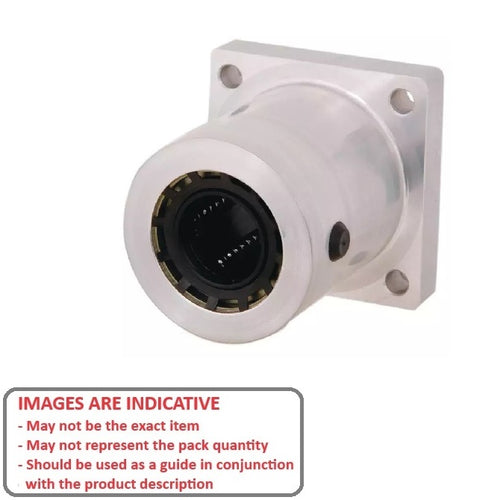

Linear - Thomson Super Housings - Smart FlangedSmart Flanged Thomson Super Housings Linear. Includes Bearings.
Product Data

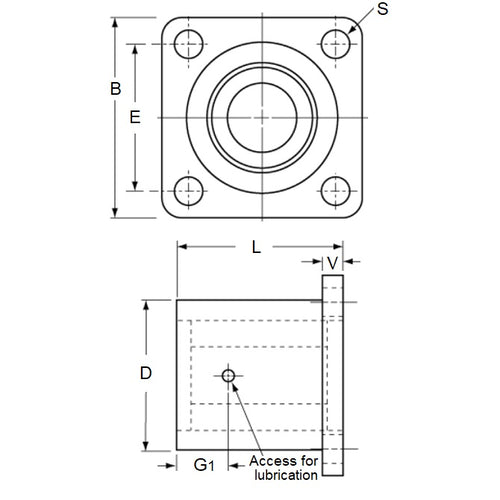

- Nominal Diameter
:
31.75
mm
(Equiv. 1.25 in.) - Flange Length and Width (B)
88.90
mm
(Equiv. 3.5 in.) - Bolt Distance and Dia. (S x E)
8.9 x 69.9
mm
(Equiv. 0.35 in.) - Length (L) 92.20 mm
- Width (D) 76.20 mm
- Flange Height (V) 16.00 mm
- Lube Hole Distance (G1) 42.42 mm
- Type Single
- Weight 16 Kg
- Dynamic Load Capacity 1049 kgf
Product Compliance and Data
Additional Resources
Cross References
- QBC TSS6UFB-20
- TLM-1220
- TLM1220
- TSS6UFB20
