P-MXL-030-064FF-AL-G-060 - Datasheet
MBA
Category Information

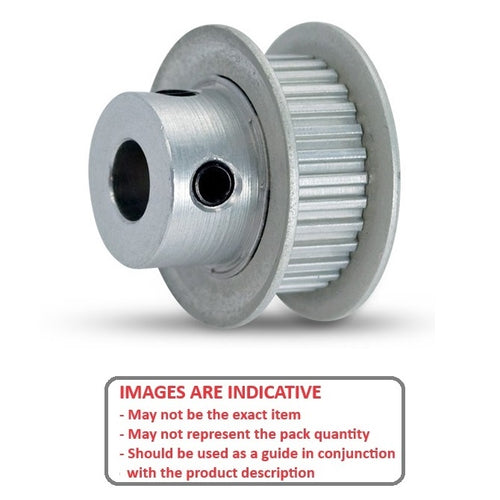

Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - ThroughThrough Aluminium 6.4mm Wide 2.032mm Pitch MXL Inch Timing Pulleys. Timing Pulleys to suit MXL 2.032mm Pitch Timing Belts. Suits belts 6.0 to 6.4mm wide.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- 2.032mm metric is equivalent to 0.080 pitch imperial
Product Data
- Number of Teeth : 30
- Max Belt Width
6.40
mm
(Equiv. 0.252 in.) - Bore (d)
6.000
mm
(Equiv. 0.236 in.) - Bore Type Finished

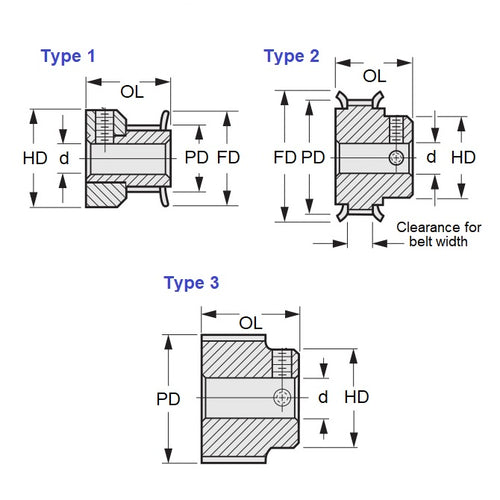

- Type 2
- Pitch Dia. (PD) 19.40 mm
- Flange Diameter (FD) 24.0 mm
- Overall Length 17.5 mm
- Hub Diameter (HD) 13.9
- Locking Type Set Screw M3 x 4
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- ATA 150-126430
- Gates 30MP025M6FA6
- ATA AMT-607-604
- A6A16M030DF6006
- 150126430
- FVA-H2-30
- FVAH230
- AMT607604
