Miniature Bearings Australia
E32006J - Datasheet
MBA
Category Information

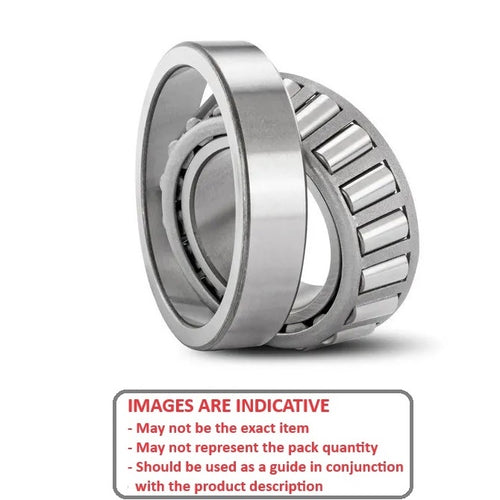

Bearings - Tapered Roller Set - Single Row - MetricMetric Single Row Tapered Roller Set Bearings. Includes cup and cone
- Tapered roller bearings provide for high thrust and axial loads, and are commonly used in automotive applications such as wheels, differentials and gearboxes.
- Matched sets include the cup and the cone.
- An expanded range may be available on special order. Please enquire.
Product Data

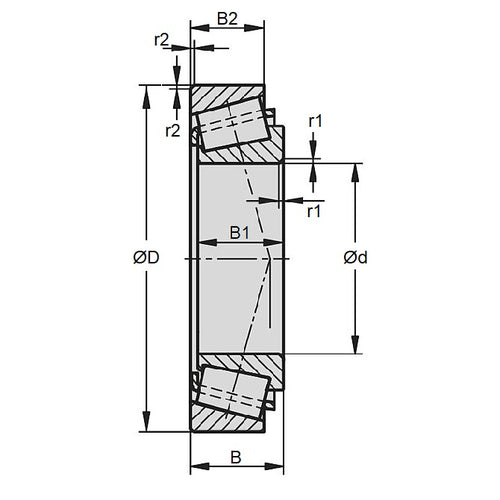

- Inside Diameter
:
30
mm
(Equiv. 1.181 in.) - Outside Diameter
55
mm
(Equiv. 2.165 in.) - Assembled Width
17
mm
(Equiv. 0.669 in.) - Cone Width 17 mm
- Cup Width 13 mm
- Radius Cone (min) 1 mm
- Radius Cup (min) 1 mm
- Basic Dynamic Load 37500 N
- Basic Static Load 46500 N
- Limiting Speed for Grease 6700
- Limiting Speed for Oil 9100
- Material Chrome Steel
