Miniature Bearings Australia

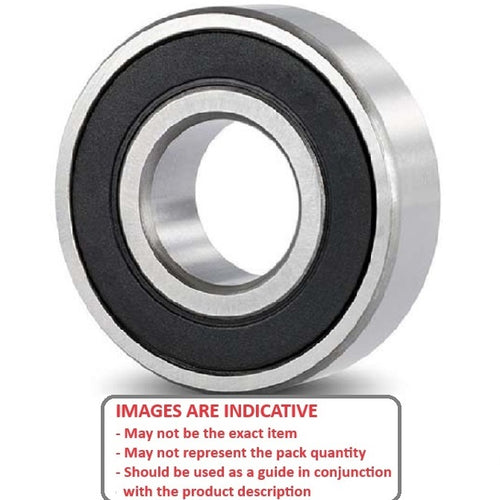

S6006-2RS - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
- ID (d)
:
30.000
mm
+ 0.000 / - 0.011
(Equiv. 1.181 in.) - OD (D)
55.000
mm
+ 0.000 / - 0.013
(Equiv. 2.165 in.) - Width (B)
13.000
mm
+ 0.000 / - 0.120
(Equiv. 0.512 in.) - Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6006
- Limiting Speed 8840
- Cage Type Standard
- Static Load Rating KGf 843
- Dynamic Load Rating KGf 1349
- Radii 1.00 mm
- Inner Shoulder (UI) 38.00mm
- Outer Shoulder (UO) 49.90 mm
- Number of Balls 11
- Clearance CN (5 to 20)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- Stainless Alternative 60062RS
- Stainless Alternative 6006-2RS
- Stainless Alternative 6006RS
- Stainless Alternative 6006-RS
- Similar Part S6006
- Sealed S6006 / 13
- KSK S6006-2RS
- KSK S6006-RS
- BOCA SMR6006-2RSC
- BOCA SMR6006-RSC
- Similar Part SS6006
- Nachi SS6006-2RS
- Nachi SS6006-RS
- SS6006RS
- SS60062RS
- 6006H-RS
- 6006H2RS
- 6006HRS
- 6006H-2RS
- SMR60062RSC
- SMR6006RSC
- 6006 Basic Size Ref
