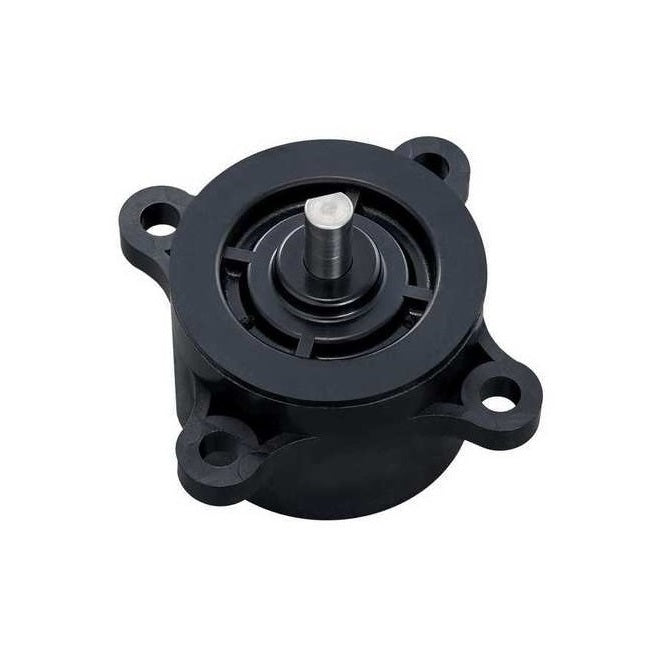

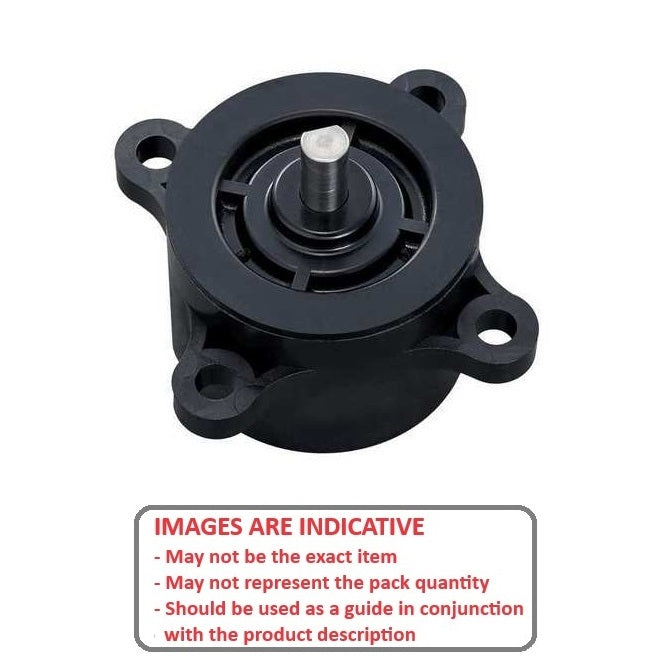

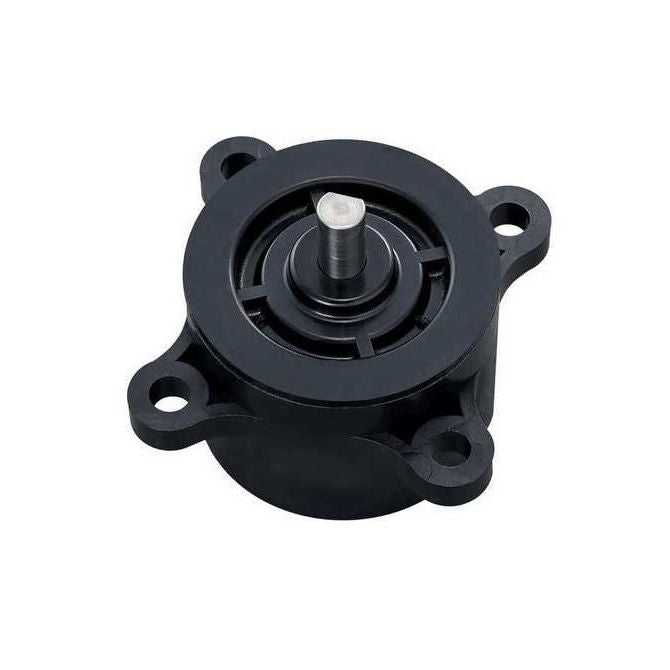

DR-3000-B - Datasheet
MBA
Category Information
Dampers - Rotary - 50 to 400 Ncm50 to 400 Ncm Rotary Dampers. Rotary dampers enable products to function with a smooth mechanical motion. Prevent lid and access panel closure damage.
- An expanded range may be available on special order. Please enquire.
- Body: Polycarbonate.
- Temp range 0 to 50 oC.
- Weight: Max 120 grams.
Product Data
- Damping Torque : 300 (+/- 80) Ncm
- Direction Bi-directional
- Max Speed 50 RPM
Product Compliance and Data
Additional Resources
Cross References
- FRTF2303
- ACE-RD203
- ACERD203
