FL-30-W300 - Datasheet
MBA
Category Information

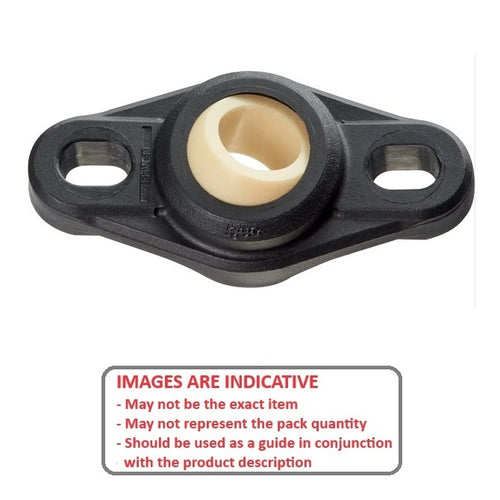

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - W300W300 Self Aligning Flanged 2 Bolt Housing Assembly. With integral self aligning plain bearing.
- Housing: Igumid G.
- Ball: Highly wear resistant Iglidur W300.

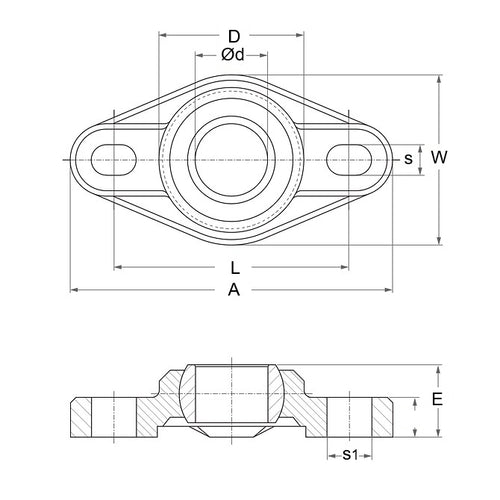

Product Data
- Nominal Shaft Size
:
30.00
mm
(Equiv. 1.181 in.) - Overall Length (A)
87.500
mm
(Equiv. 3.445 in.) - Overall Height (E) 26.000 mm
- Min to Max Shaft Dia. 12 mm
- Base Height (D) 15.000 mm
- Bolt Hole Size (s) 10.5 x 16.0 mm
- Bolt Hole Centres (L) 65.000 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus EFOM-30
- EFOM30
- I709
- I-709
