CCE-03016-C - Datasheet
MBA
Category Information

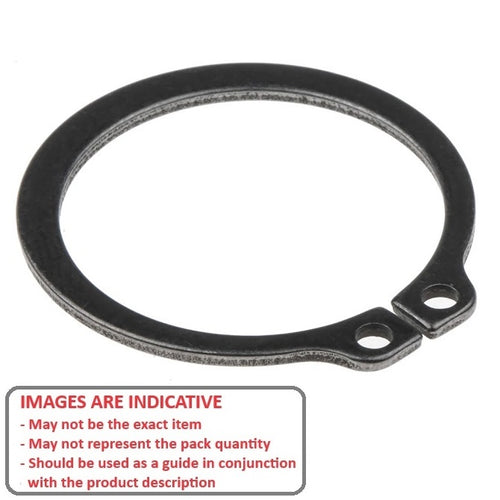

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
30.16
mm
(Equiv. 1.187 in.) - Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.) - Groove Dia. (Dg)
28.40
mm
+/- 0.051
(Equiv. 1.118 in.) - Approx. Loose Circlip ID (A) 27.89 mm
- Groove Width (W) 1.42 mm
- Clearance on Shaft (C1) 40.89 mm
- Clearance in Groove (C1) 39.12 mm
- Min. Lug Diameter (h) 1.93 mm
- Min. Extension (n) 2.82
- Standard MIL-16624
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97633A330
- NoCor SH-118
- N14000118
- N1400-0118
- SH118
